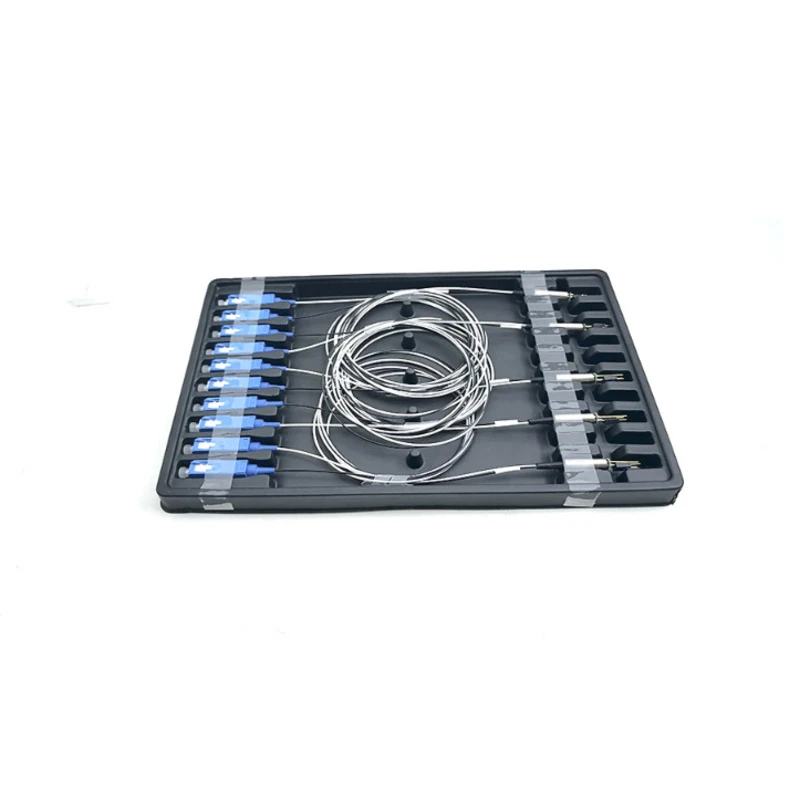

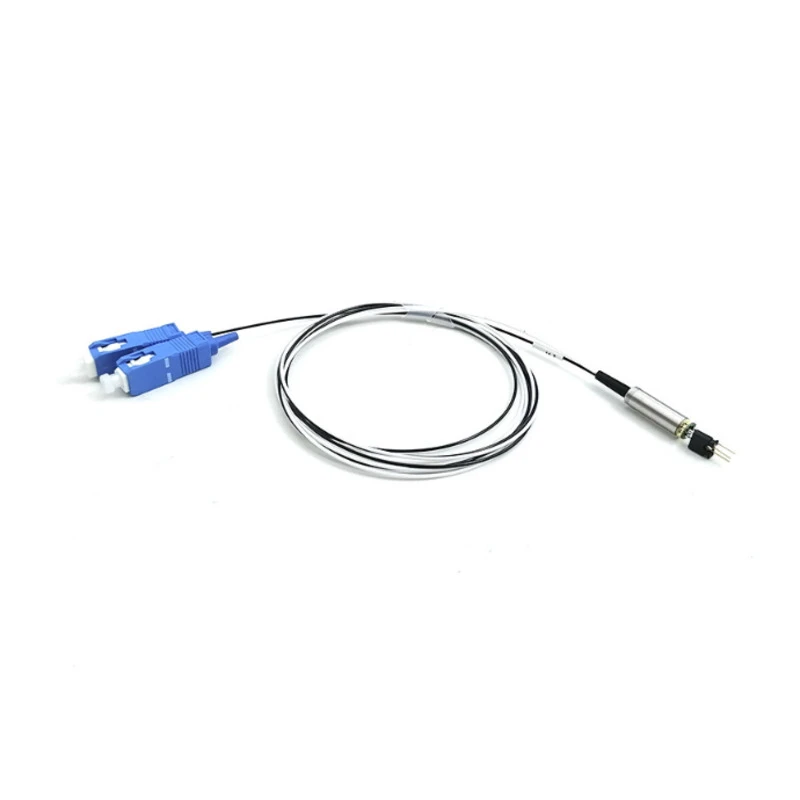

OPTEKCOM singemode MEMS Variable Optical Attenuator (VOA) is a precise and adjustable voltage-driven optical component. The key part of the component is MEMS chip; driving voltage produces electrostatic force to drive the micro-mirror on the chip, then to adjust output optical power. This SM MEMS VOA has excellent features such as compact dimension, low power consumption, fast responding, anti-shock, low WDL as well as low PDL.
Low Insertion Loss & Low PDL Low Power Consumption
Low WDL &Compact Design Insensitive to Shock and Vibration
High Reliability and Stability
Power control and equalization in multi channel System Gain-tilt control in EDFAS
Receiver protection Channel on/off switching
| Parameter | Specification | Unit | Note |
|---|---|---|---|
| 1064 | nm | ||
| 1310 | nm | O Band | |
| Wavelength Range | 1530~1570 | nm | C band |
| 1570~1610 | nm | L band | |
| Attenuation Type | Bright or Dark | - | |
| Attenuation Range | ≥30 | dB | For Single Mode |
| Blocking state Attenuation) | ≥40 | dB | Dark Type |
| Insertion Loss | ≤0.7 | dB | For Single Mode |
| Attenuation Resolution | Continuous | - | |
| Wavelength Dependent Loss | ≤0.3 | dB | @<0 dB Att. |
| ≤1.5 Typical 0.8 | dB | @<20 dB Att. | |
| Polarization Dependent Loss | 0.1 | dB | @<0 dB Att. |
| 0.5 | dB | @<20 dB Att. | |
| Temperature Dependent Loss | ≤0.7 | dB | @<0 dB Att. compare with RT |
| ≤1.0 | dB | @<20 dB Att. compare with RT | |
| Return loss | ≥45 | dB | For Single Mode |
| Respnse Time | ≤2 | ms | 10-90%optical power |
| Optical Power Handing | 500 | mW | |
| Driving Voltage | 6.5 or 15 | V | |
| Power Consumption | ≤2 | mW | |
| Operation Temperature | 0~70 | ℃ | |
| Storage Temperature | -40~85 | ℃ |
