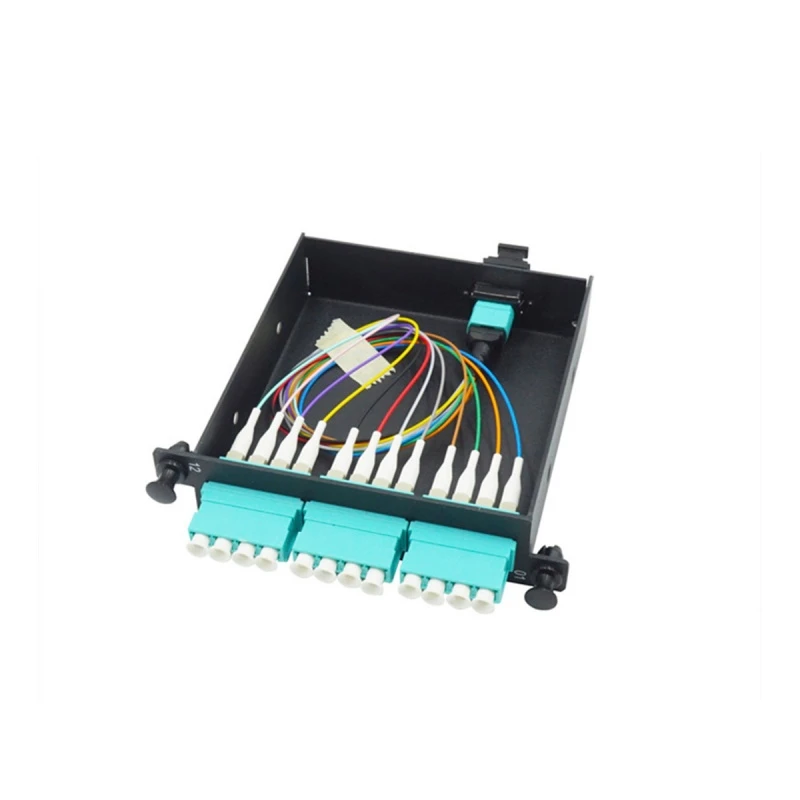

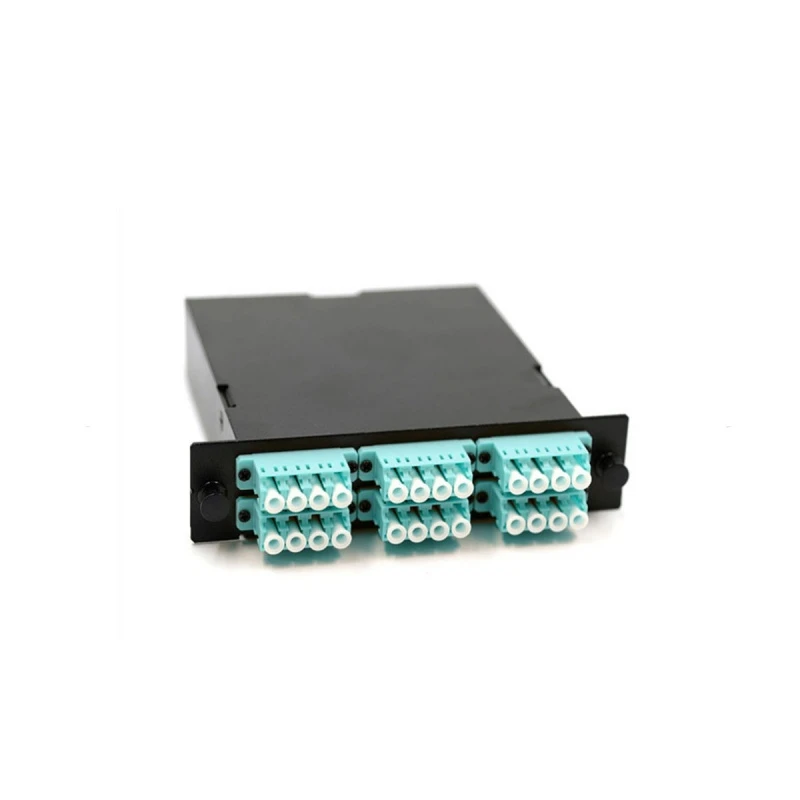

Pre-assembled MPO/MTP modules improve the speed of installation. Modules with external MPO/MTP ports can be easily and efficiently connected to trunks or patchleads. Single MPO/MTP mating action provides instant connection for 24 fibres at the time
Can be installed 24 or 12 (LC) fibres,12 SC fibers in LGX module.
24 Fibre ferrule MPO/MTP interface.
Premium LC Low Loss terminations.
Standard and Elite low loss MPO/ MTP connectors,
SM and MM (OM3/OM4) Versions.
Data Centre Infrastructure
Storage Area Network- Fiber Channel
Parallel Optics
InfiniBand
| Connector Type | 12‑Fiber Or 24Fiber MPO/MTP (non‑pinned) |
|---|---|
| Polish | PC(MM); APC(SM) |
| Housing Colour | MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow) |
| Insertion Loss, Typical (MTP/MPO) | ≤ 0.10 dB |
| Insertion loss, max. (MTP/MPO) | ≤ 0.3 dB |
| Return loss (MTP/MPO SM) | PC >55dB; APC> 60dB |
| Insertion Loss, Typical (LC/SC) | ≤ 0.10 dB |
| Insertion loss, max. (LC/SC) | ≤ 0.3 dB |
| Return loss (LC/SC SM) | PC >55dB; APC> 65dB |
| Durability(500 Matings) | < 0.2dB |
