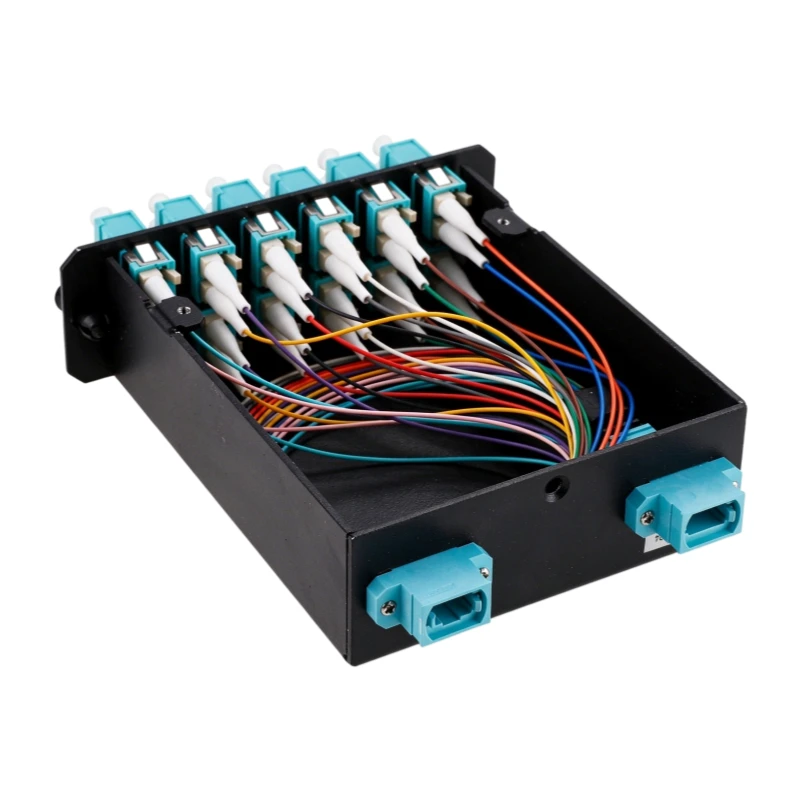

HD MTP fiber cassette modules are pre-terminated, pre-tested, and come with 24-fiber MTP adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high density fiber cable assemblies for multiple applications.
Can be installed 24 or 12 (LC) fibres,12 SC fibers in LGX module.
24 Fibre ferrule MPO/MTP interface.
Premium LC Low Loss terminations.
Standard and Elite low loss MPO/ MTP connectors,
SM and MM (OM3/OM4) Versions.
Data Centre Infrastructure
Storage Area Network- Fiber Channel
Parallel Optics
InfiniBand
| Connector Type | 12‑Fiber Or 24Fiber MPO/MTP (non‑pinned) |
|---|---|
| Polish | PC(MM); APC(SM) |
| Housing Colour | MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow) |
| Insertion Loss, Typical (MTP/MPO) | ≤ 0.10 dB |
| Insertion loss, max. (MTP/MPO) | ≤ 0.3 dB |
| Return loss (MTP/MPO SM) | PC >55dB; APC> 60dB |
| Insertion Loss, Typical (LC/SC) | ≤ 0.10 dB |
| Insertion loss, max. (LC/SC) | ≤ 0.3 dB |
| Return loss (LC/SC SM) | PC >55dB; APC> 65dB |
| Durability(500 Matings) | < 0.2dB |
