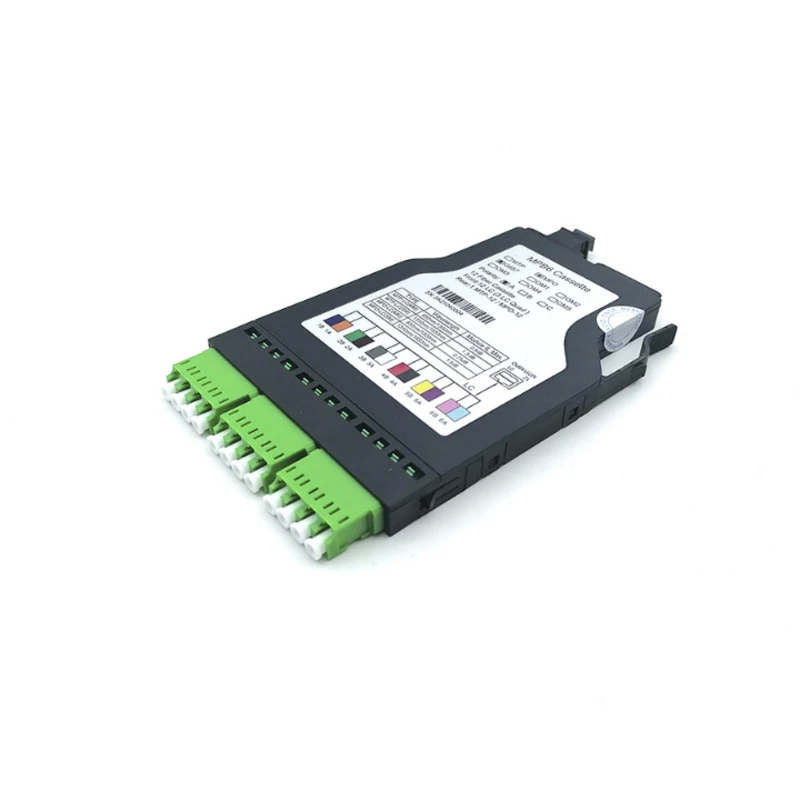

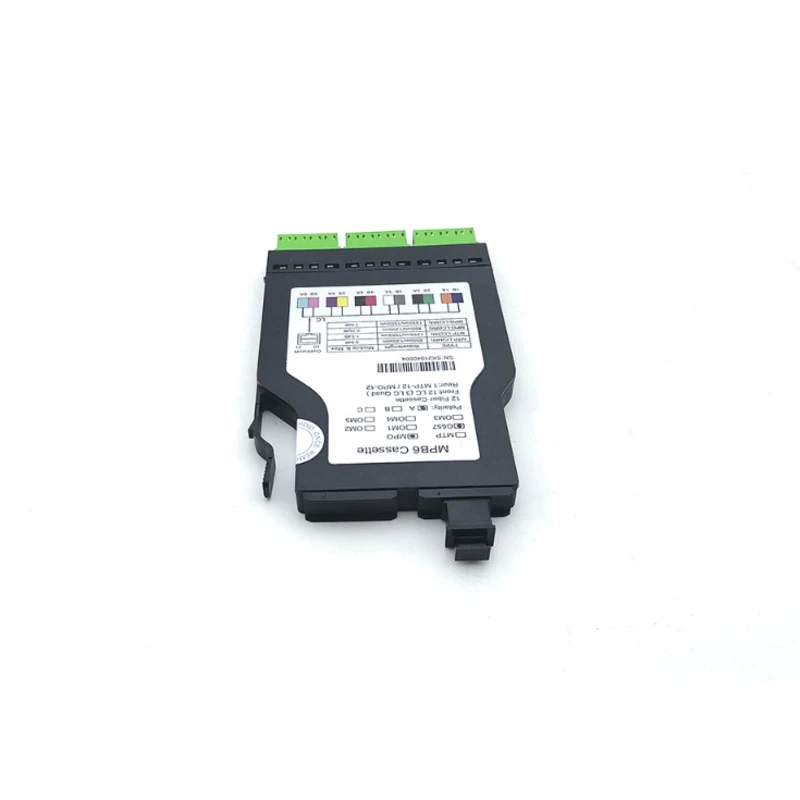

This Fiber Cassette Module Provide the interface between the bulk cable and the LC duplex cables that connect directly into the electronics. it protect and organize heat-shrink fusion spliced fibers(up to 12 fibers) inside a cassette. the modular design enables faster field splicing and simple management of pigtails within the housing Protective conduit can also be snapped into the rear of the module in cases where higher density cables are spliced or where non-standard cable constructions are used. fusion splicing is generally more common in single mode applications where operators consolidate cables into high-density cross-connect racks.
16 LC or 8 SC fiber optic connection. 16F MPO/MTP fiber connection.
LC can use low-loss connectors. Common and elite MTP/MPO connectors.
The fiber types are SM, MM (OM1/OM2/OM3/OM4/OM5). It is made of cold-rolled steel plate with frosted surface.
Data center and infrastructure. Storage area network.
Fibre Channel.
| Connector Type | 8-Fiber, 12-Fiber,16-Fiber Or 24Fiber MPO/MTP (non-pinned) |
|---|---|
| Polish | PC(MM); APC(SM) |
| Housing Colour | MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow) |
| Insertion Loss, Typical (MTP/MPO) | ≤ 0.10 dB |
| Insertion loss, max. (MTP/MPO) | ≤ 0.3 dB |
| Return loss (MTP/MPO SM) | PC >55dB; APC> 60dB |
| Insertion Loss, Typical (LC/SC) | ≤ 0.10 dB |
| Insertion loss, max. (LC/SC) | ≤ 0.3 dB |
| Return loss (LC/SC SM) | PC >55dB; APC> 65dB |
| Durability(500 Matings) | < 0.2dB |
