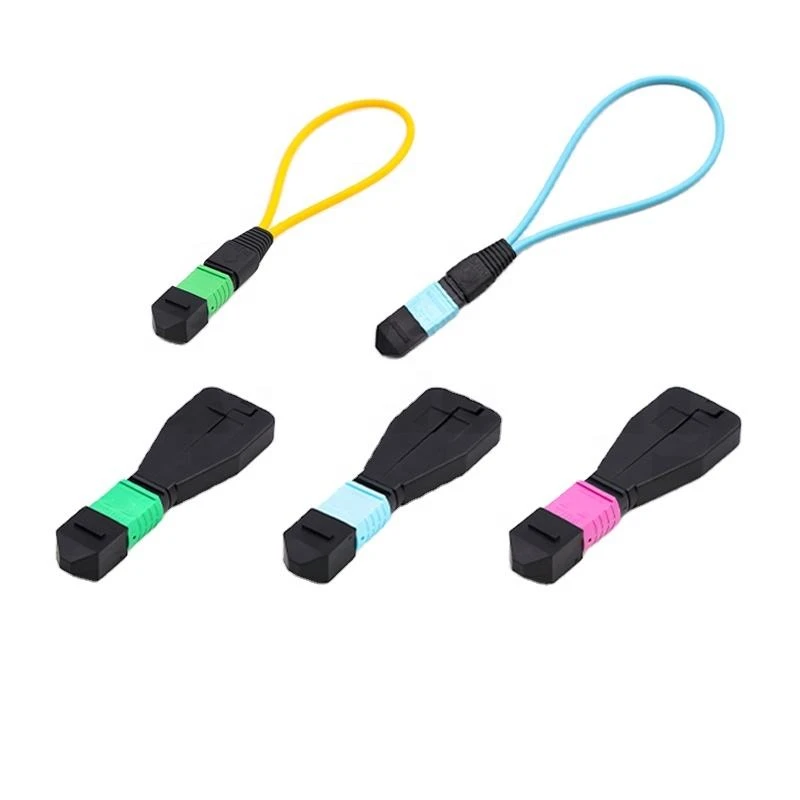

MPO/MTP Loopback modules are used widely within testing environment especially within parallel optics 40 and 100G networks.Devices allow verification and testing of transceivers featuring MPO/MTP interface – 40G BASED-SR4 QSFP+ or 100G BASE-SR10 CXP/CFP devices. Loopbacks are built to link Transceivers (TX) and Receivers (RX) positions of MPO/MTP transceivers interfaces. MPO/MTP loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MPO/MTP trunks/patch leads.
12 or 24 Fiber Ferrule
MPO/MTP LSZH, OFNP, OFNR Cable Jacket Options
Female and Male MPO/MTP option of Connectors
Polarity Variants selection40G QSFP+ and 100G CXP/CFP transceivers
Data Centre Infrastructure
Storage Area Network- Fiber Channel
Parallel Optics
InfiniBand
Emerging 40 and 100Gbps Protocols
| MPO Connector | Standard SM MT Ferrule | Low Loss SM MT Ferrule | Standard MM MT Ferrule | Low Loss MM MT Ferrule | |||
|---|---|---|---|---|---|---|---|
| Polish | APC | PC | APC | PC | PC | PC | |
| Insertion Loss(dB) | Typical | 0.5 | 0.5 | 0.3 | 0.3 | 0.5 | 0.3 |
| Maximun | 0.7 | 0.7 | 0.5 | 0.5 | 0.7 | 0.5 | |
| Return Loss(dB) | 60 | 45 | 60 | 45 | 20 | 20 | |
| Exchangeability(dB) | ≤0.3 | ||||||
| Durability(dB) | ≤0.2dB (500 Matings,per EIA‑455‑21A) | ||||||
| Tensile Strength(dB) | ≤0.3dB (Max 66N) | ||||||
| Operating temperature(℃) | -20~+60 | ||||||
| Storage temperature(℃) | -40~+80 | ||||||
