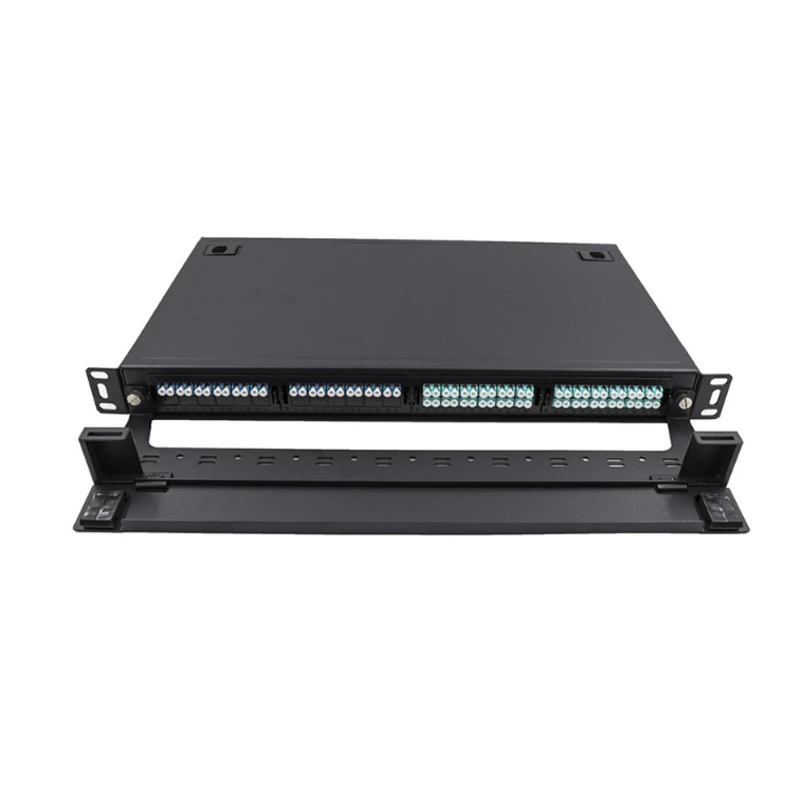

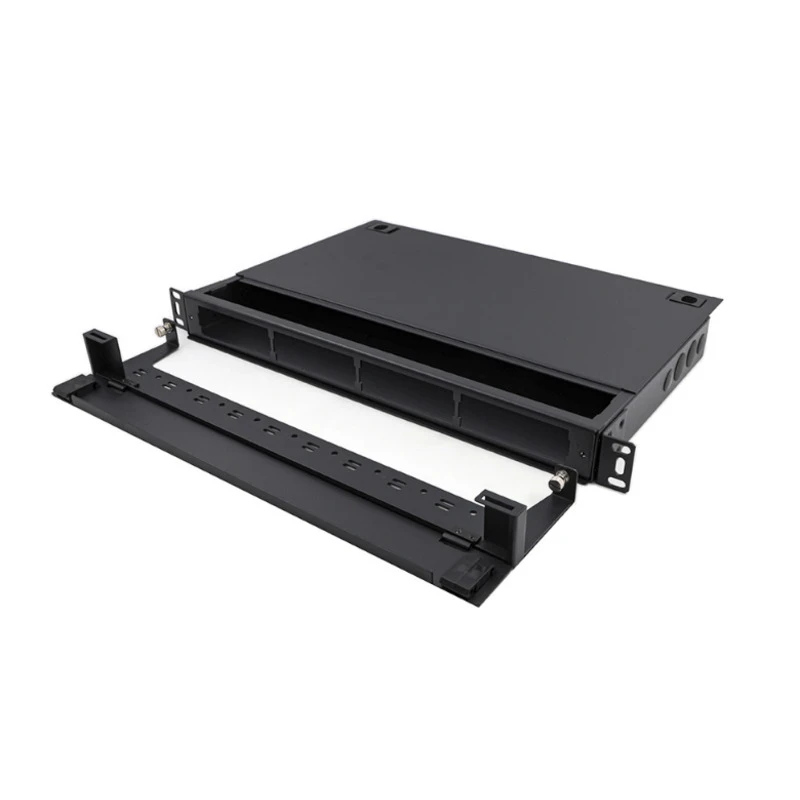

1U 96 Fiber MPO to LC Patch Panel to Hold With 4pcs Fiber Cassette Modules
1U 96 Fiber MPO to LC Patch Panel to Hold With 4pcs Fiber Cassette Modules
1U 96 Fiber MPO to LC Patch Panel to Hold With 4pcs Fiber Cassette Modules
1U 96 Fiber MPO to LC Patch Panel to Hold With 4pcs Fiber Cassette Modules

This 1U rack mount fixed fiber enclosure is engineered to accommodate up to 4 LGX cassettes or fiber adapter panels within a single 1U space. Offering a fully modular solution, it provides exceptional versatility for various fiber optic patching, terminating, and splicing applications. The tool-less removable top cover facilitates convenient cable management and maintenance operations. This enclosure serves as an ideal transition point from backbone cabling to distribution switching, interconnect to active equipment, or as a cross-connect/interconnect in main or horizontal distribution areas.

Features

Tool-less removable top cover for simplified operation Unique one-piece structure enabling fast deployment

Modular cabling solution adaptable to different requirements Provides access for high-density patching systems

Application

Data centers and pre-terminated installations Storage area networking fiber channel

High density architectures Telecommunication networks

Specification
Model NumberMPB-1U / 2U
Max Capacity1U - 96~192 Core / 2U - 192~384 Core
Cassettes Compatible1U - 4* 12/24 Duplex LC | 2U - 8*12/24 Duplex LC
Connector TypeMPO MTP LC SC FC ST
Pre-ConnectionOptional
MaterialSPCC (Cold Rolled Steel Sheet)
FinishingPowder Coated Matt Black
Dimension (mm)482.6*363.2*1U/2U
Operation Temperature-20℃ ~ 70℃
