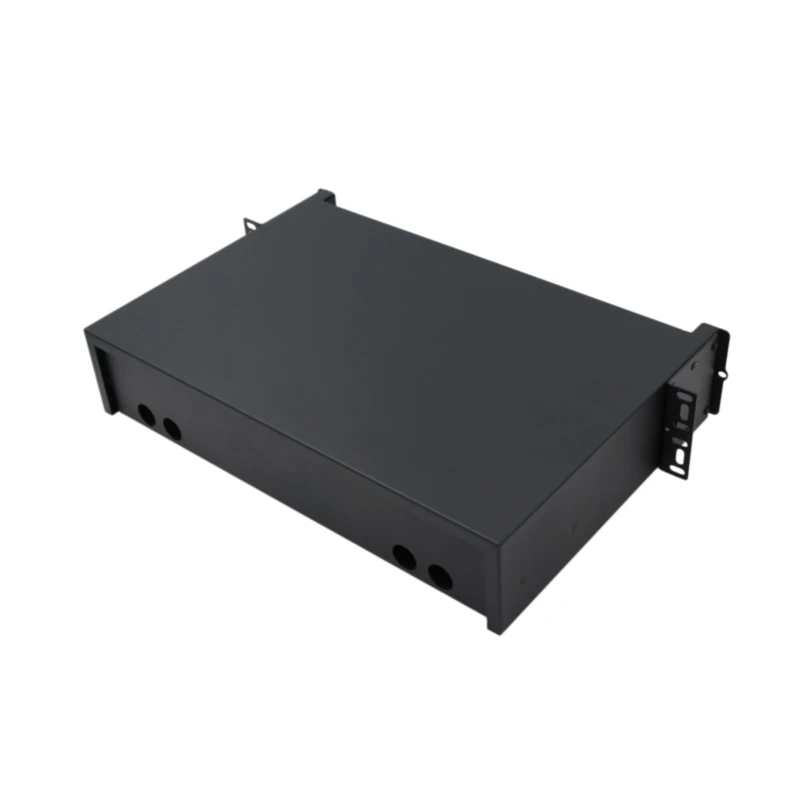

This MTP/MPO fiber patch panel adopt high-density fiber connector and single/ribbon fibers finished termination and test in the factory. Support onsite equipment connect and using immediately, and finish data center development fast. It’ ideal solution for increasingly high-density cable management of data center. The design of enclosure allows for easy connection to the LC adapters using multi-fiber optical patch cords (sold separately) and is slidable in a standard 19 inch rack or cabinet frame.
This can support up to 8 MPO cassettes,;
This patch panel also can load with splice trays, to do single splcing when it is necessary;
It adopts standard unit structure size and is suitable for the installation of various cabinets and racks；
Storage area networking fiber channel
High denisty architectures
Data centers,pre-terminated installations
Telecommunication networks
| Max Capacity | 96F‑1U 192F‑2U 288F‑3U |
|---|---|
| Dimension | 485*245*1U/2U/3U |
| Connectors | MPO or MTP, LC |
| Cassettes | 24F with Duplex LC |
| Materials | SPCC(cold Rolled Steel Sheet) |
| Painting Finish | Powder Coat Matt Finish |
| Painting Color | 9005: RAL Black |
