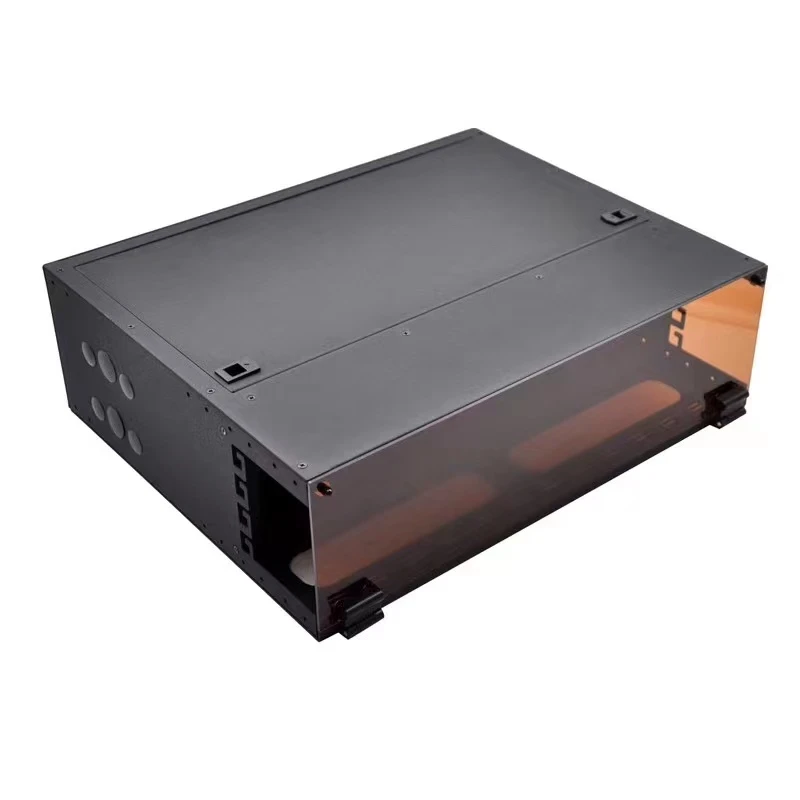

This 3U 288 Ports High Density MPO/MTP Patch Panel can support 12x 24 fiber cassette modules, it made of high quality cold rolled steel sheet, the modular design make it easy and fast assembly and installation, this widely used for high density data center connectivity.
Unique tool-free installation design for easy and fast assembly and installation.
Factory pre- terminated module, plug and play on site, no need fiber splicing and cable wiring which saves labor cost.
Front cable management function is convinent for managing cable and identifying link label.
19"rack mount, the panel and modules are made of cold rolled steel sheet.
Modular in design with higher density, special mini module comes up to 24 LC or 12 SC adapter ports and switch to MTP/MPO connection.
Storage area networking fiber channel
High denisty architectures
Data centers,pre-terminated installations
Telecommunication networks
| Max Capacity | 96F‑1U 192F‑2U 288F‑3U |
|---|---|
| Dimension | 485*245*1U/2U/3U |
| Connectors | MPO or MTP, LC |
| Cassettes | 24F with Duplex LC |
| Materials | SPCC(cold Rolled Steel Sheet) |
| Painting Finish | Powder Coat Matt Finish |
| Painting Color | 9005: RAL Black |
