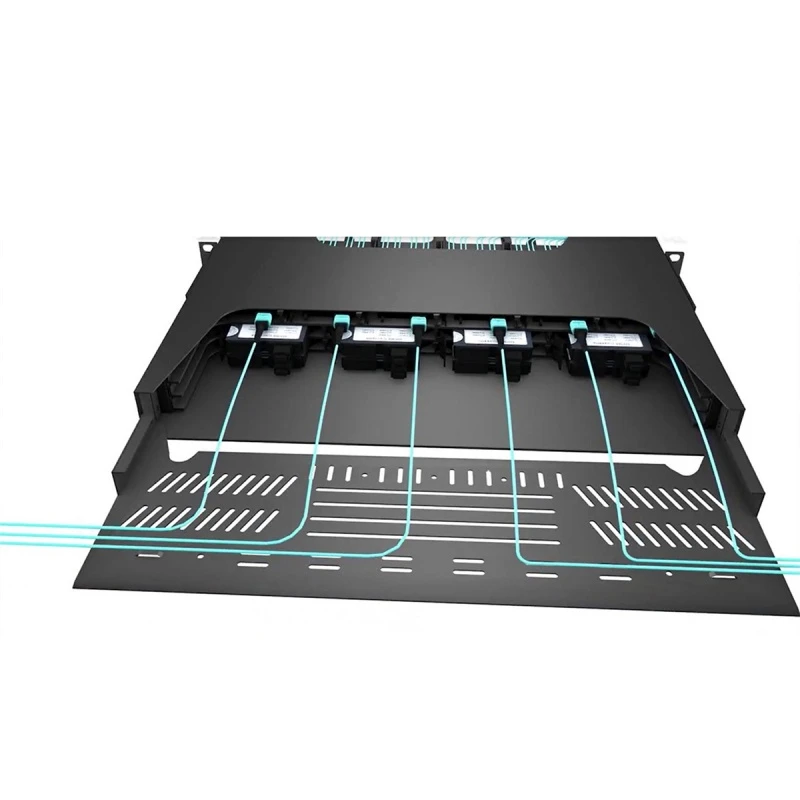

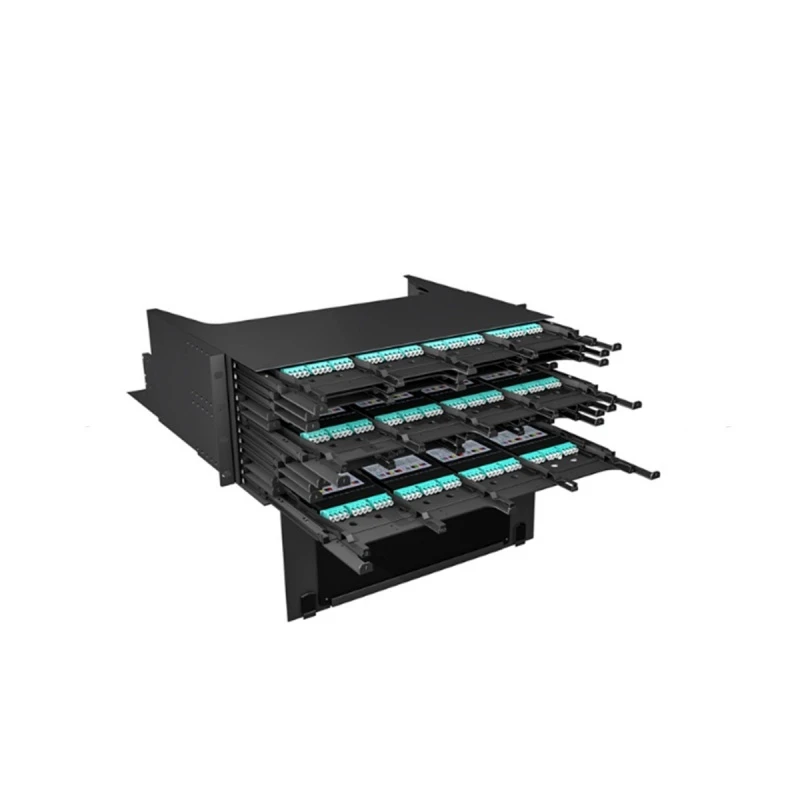

4U 576 Ports HD Fiber Patch Panel MPO To LC Cassettes
4U 576 Ports HD Fiber Patch Panel MPO To LC Cassettes
4U 576 Ports HD Fiber Patch Panel MPO To LC Cassettes
4U 576 Ports HD Fiber Patch Panel MPO To LC Cassettes

This MP6 solution is a high-density pre-terminated fiber cabling solution that simplifies installation and improvesthe performance of your data center environment. They offer higher system density than traditional pre-termination. The system also offers the highest port density on the market. Consisting of optical trunks and expanders, modules, panels, harnesses, housings and jumpers, these factory-terminated solutions provide improved system performance, ensuring consistent component quality and consistent yield. This come as MP6-1U/144F MP6-2U/288F MP6-4U/576F, it can accommodate 8 , 12 or 24 fiber cassette modules.

Features

Front and rear pull-out mechanical structures
Modular design, can be pulled out by rails
Three-layer guide rail drawing structure.
Provides front and rear cable management functions
Support MTP/MPO/LC/CS connection
Support fiber splicing

Application

High-density patching system
Data Center infrastructure
Telecommunication network.

Specification
Max Capacity 1U - 144F 2U- 288F 4U- 576F
Connector Type MPO/MTP-LC/SC
Materiaal Cold Rolled Steel Plate
Afmetingen (mm) 482.8*350 * 1U/2U/4U
Operatie Temperatuur -40℃~75℃
