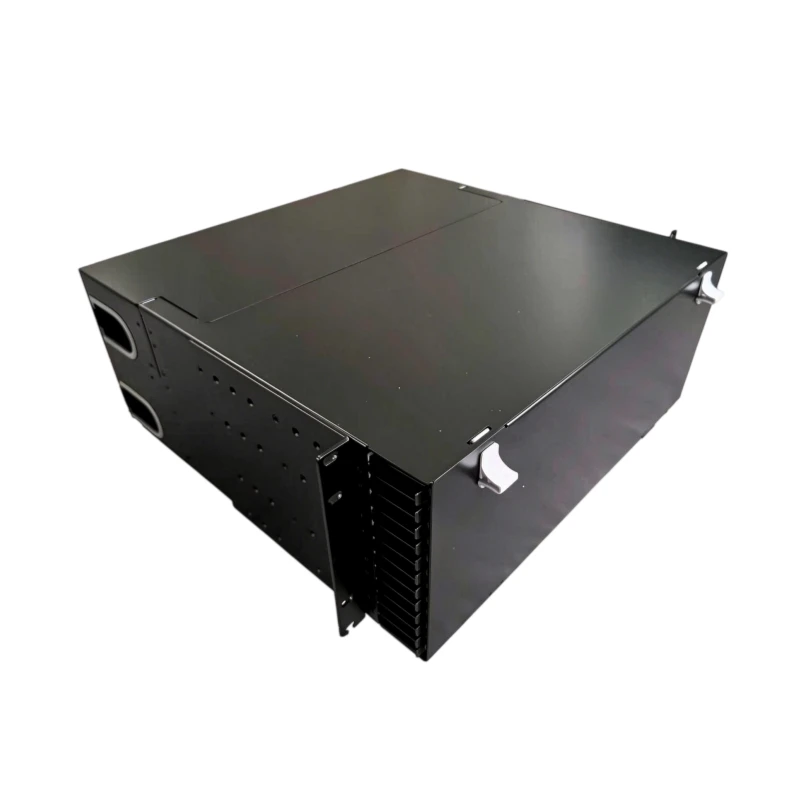

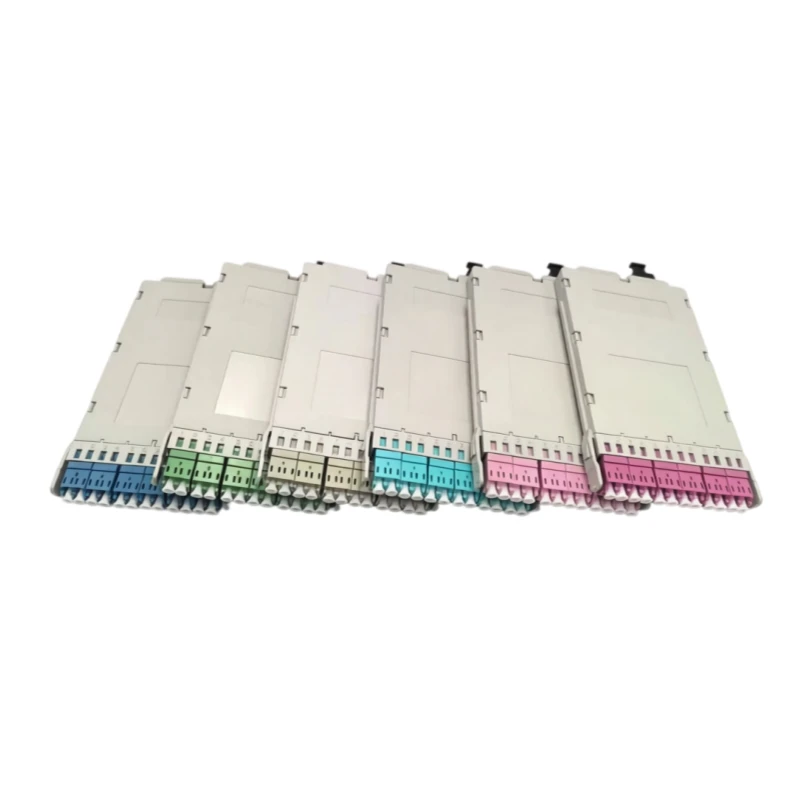

This MP6 solution is a high-density pre-terminated fiber cabling solution that simplifies installation and improvesthe performance of your data center environment. They offer higher system density than traditional pre-termination. The system also offers the highest port density on the market. Consisting of optical trunks and expanders, modules, panels, harnesses, housings and jumpers, these factory-terminated solutions provide improved system performance, ensuring consistent component quality and consistent yield. This come as MP6-1U/144F MP6-2U/288F MP6-4U/576F, it can accommodate 8 , 12 or 24 fiber cassette modules.
Front and rear pull-out mechanical structures
Modular design, can be pulled out by rails
Three-layer guide rail drawing structure.
Provides front and rear cable management functions
Support MTP/MPO/LC/CS connection
Support fiber splicing
High-density patching system
Data Center infrastructure
Telecommunication network.
| Max Capacity | 1U - 144F 2U- 288F 4U- 576F |
|---|---|
| Connector Type | MPO/MTP-LC/SC |
| Materiaal | Cold Rolled Steel Plate |
| Afmetingen (mm) | 482.8*350 * 1U/2U/4U |
| Operatie Temperatuur | -40℃~75℃ |
