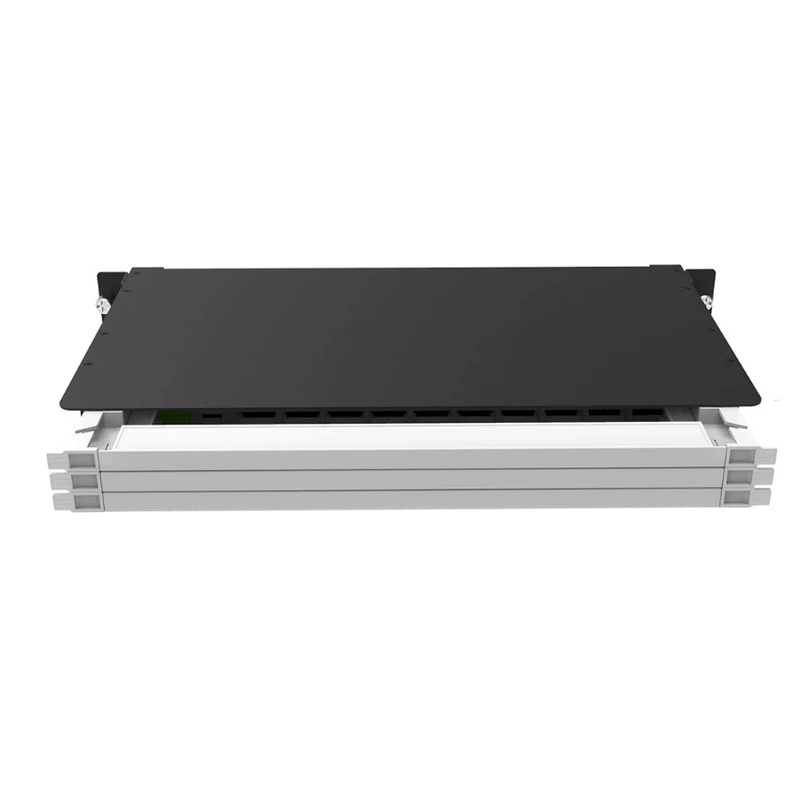

The GPX07C9 is a modular, low-loss, high-density ODF Unit that supports multiple deployment methods including MPO-LC/SC, PLC splitting, TAP, splicing, and patching. The modular slide-out tray design provides professional, reliable, and flexible cabling solutions, enhancing connectivity performance in high-density fiber management systems. Various functional trays and cabling accessories are available to improve system flexibility and ensure optimal user experience.

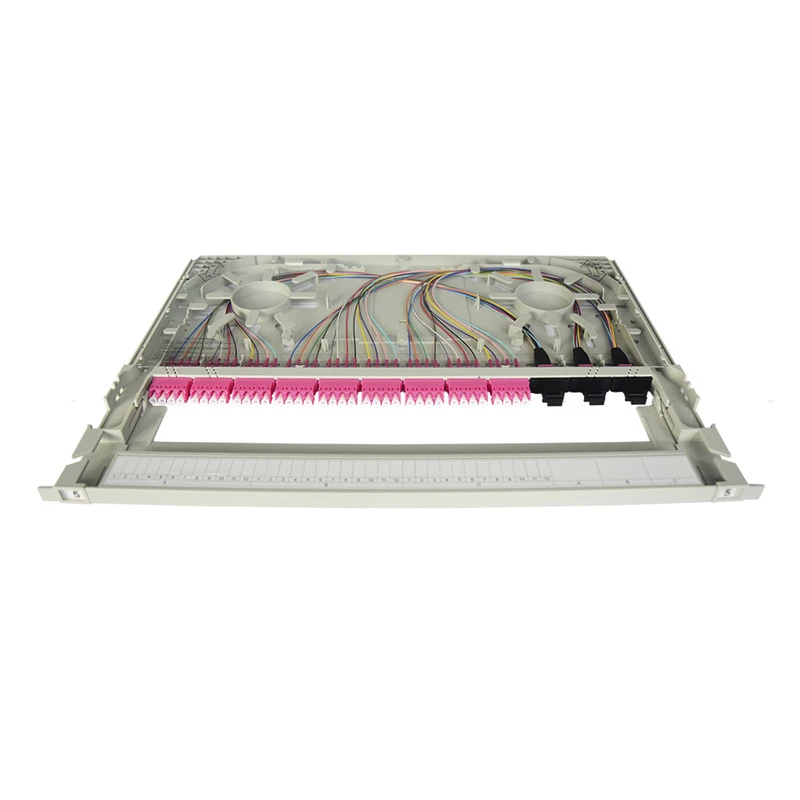

19" standard ODF Unit with easy, single-person installation Modular design with slide-out trays, each accommodating 48 LC fibers
1~6U height options available, with each 1U accommodating 3 trays Multiple deployment methods: MPO-LC/SC, PLC, TAP, splicing, and patching
Data Center Cabling High Density Fiber Cabling
Telecommunication Systems
| Model | Size (W×D×H) | Number of Trays | Maximum Capacity |
|---|---|---|---|
| GPX07C9-1U | 482×295×44.4 | 3 | 9 groups of 12F | 3 groups of 12F | 144/72 | 12 groups - 1×8LC |
| GPX07C9-2U | 482×295×88.5 | 6 | 18 groups of 12F | 6 groups of 12F | 288/144 | 24 groups - 1×8LC |
| GPX07C9-3U | 482×295×132.5 | 9 | 27 groups of 12F | 9 groups of 12F | 432/216 | 36 groups - 1×8LC |
| GPX07C9-4U | 482×295×176.5 | 12 | 36 groups of 12F | 12 groups of 12F | 576/288 | 48 groups - 1×8LC |
| GPX07C9-5U | 482×295×221 | 15 | 45 groups of 12F | 15 groups of 12F | 720/360 | 60 groups - 1×8LC |
| GPX07C9-6U | 482×295×265.5 | 18 | 54 groups of 12F | 18 groups of 12F | 864/432 | 72 groups - 1×8LC |
