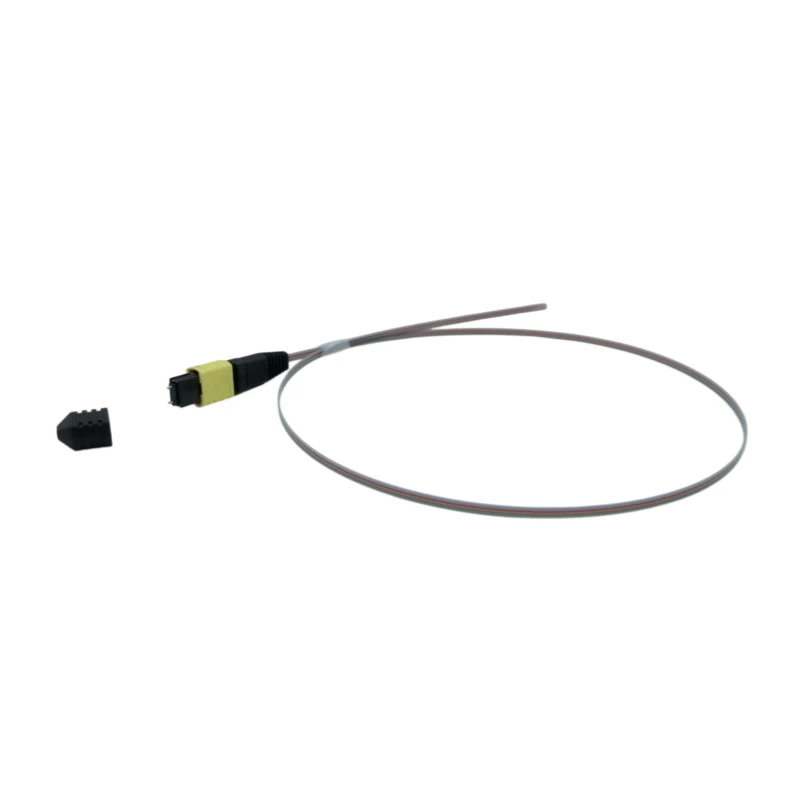

MPO/MTP fiber pigtails, equipped with low-loss MPO/MTP connectors, are factory-terminated and undergo rigorous testing to ensure verified optical performance and enhanced network integrity. Their ribbon fiber construction is ideally suited for mass-fusion splicing and efficient multi-fiber connectorization.These pigtails provide a flexible solution for data centers and telecom rooms, supporting quick, dependable, and trouble-free on-site splicing—whether connected to an MPO/MTP adapter panel, a plug-and-play module, or mass fusion-spliced inside fiber enclosures.
Reliable connectivity for dense data center and carrier-grade applications.
Option for Both Male and Female Connectors
Ribbon Fiber for Mass-fusion Splicing and Multi-fiber Connectorization
Data Center
Telecommunication
| MPO Connector | Standard SM MT Ferrule | Low Loss SM MT Ferrule | Standard MM MT Ferrule | Low Loss MM MT Ferrule | |||
|---|---|---|---|---|---|---|---|
| Fiber Mode | OS2 9/125μm | OS2 9/125μm | OS2 9/125μm | OS2 9/125μm | OM4 50/125μm | OM4 50/125μm | |
| Wavelength | 1310/1550nm | 1310/1550nm | 1310/1550nm | 1310/1550nm | 850/1300nm | 850/1300nm | |
| Connector A | MPO/MTP‑12 APC (Male) | MPO/MTP‑12 APC (Female) | MPO/MTP‑12 APC (Male) | MPO/MTP‑12 APC (Female) | MPO/MTP‑12 UPC (Female) | MPO/MTP‑12 UPC (Male) | |
| Connector B | Unterminated | Unterminated | Unterminated | Unterminated | Unterminated | Unterminated | |
| Glass Fiber | G.657.A1 | G.657.A1 | G.657.A1 | G.657.A1 | Bend Insensitive Fiber | Bend Insensitive Fiber | |
| Minimum Bend Radius | 10mm | 10mm | 10mm | 10mm | 7.5mm | 7.5mm | |
| Insertion Loss(dB) | Typical | ≤0.35 | ≤0.35 | ≤0.35 | ≤0.35 | ≤0.35 | ≤0.35 |
| Maximum | ≤0.35 | ≤0.35 | ≤0.35 | ≤0.35 | ≤0.35 | ≤0.35 | |
| Return Loss(dB) | ≥65 | ≥65 | ≥65 | ≥65 | ≥27 | ≥27 | |
| Attenuation | ≤0.35dB/km at 1310nm, ≤0.21dB/km at 1550nm | ≤2.3dB/km at 850nm, ≤0.6dB/km at 1300nm | |||||
