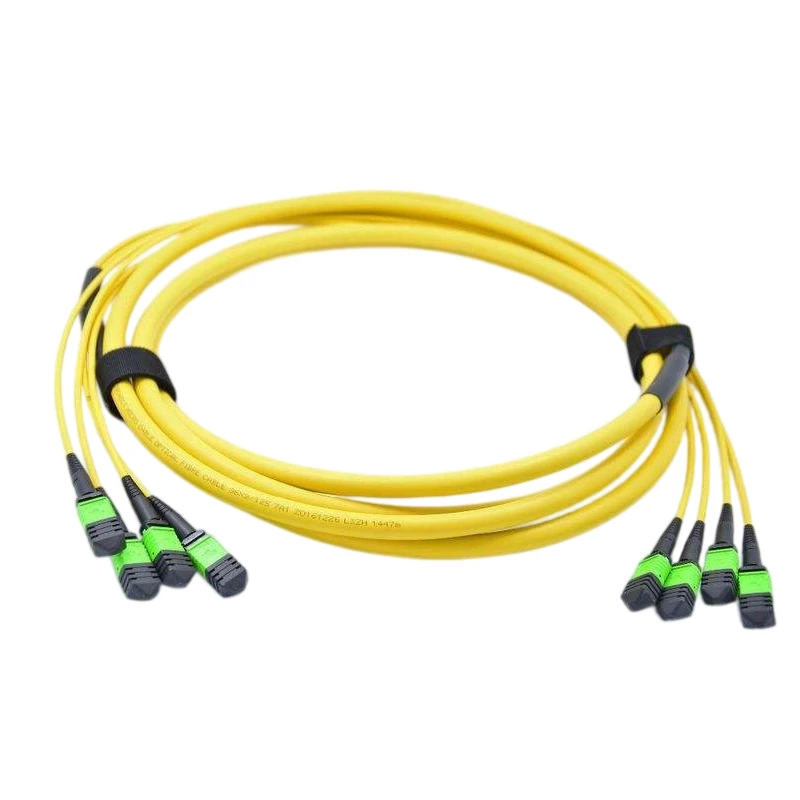

OPTEKCOM provide complete MPO/MTP solution for high densigty data center interconnection , including 8/12/16/24/48/72/144 Fiber trunk cable, breakout cable,patch panel, cassette modules to support high-density fiber patching sytem in data centers. Our engineering team are highly skilled and with very strong customization capabilities to ensure high performance, reliability, and fast delivery.
Low insertion loss and high return loss
High precision connector
8F,12F,16F,24F,48F,72F,96F,144F,288F optional
OS2,OM3,OM4,OM5 fiber avaliable
100% factory terminated and tested
High-density patching system
high-density data center
| MPO Connector | Standard SM MT Ferrule | Low Loss SM MT Ferrule | Standard MM MT Ferrule | Low Loss MM MT Ferrule | |||
|---|---|---|---|---|---|---|---|
| Polish | APC | PC | APC | PC | PC | PC | |
| Insertion Loss(dB) | Typical | 0.5 | 0.5 | 0.3 | 0.3 | 0.5 | 0.3 |
| Maximun | 0.7 | 0.7 | 0.5 | 0.5 | 0.7 | 0.5 | |
| Return Loss（dB） | 60 | 45 | 60 | 45 | 20 | 20 | |
| Exchangeability(dB） | ≤0.3 | ||||||
| Durability（dB） | ≤0.2dB (500 Matings,per EIA-455-21A) | ||||||
| Tensile Strength（dB） | ≤0.3dB (Max 66N) | ||||||
| Operating temperature（℃） | -20~+60 | ||||||
| Storage temperature（℃） | -40~+80 | ||||||
