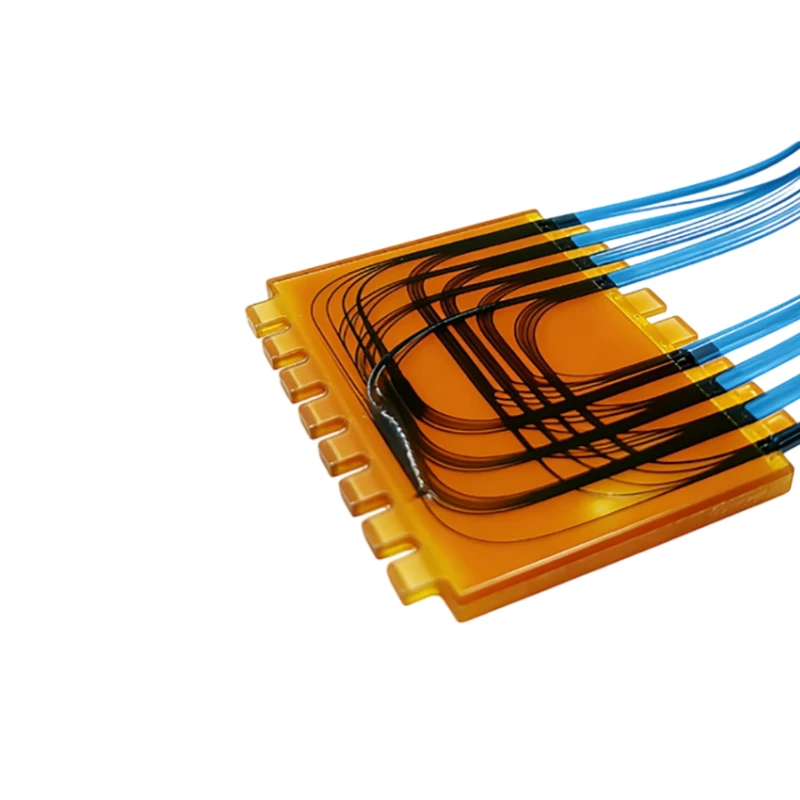

Optical Fiber Flex Circuit(fiber shuffle) designed for next-generation high-density interconnect architectures, it is an all-optical flexible interconnection medium that fixes multiple optical fibers in a flexible polymer substrate and assembles high-density optical connectors at both ends. It can replace traditional scattered jumpers to achieve high-density, low-loss, and bendable precise optical path wiring.
Ultra-high density
Low loss and crosstalk resistance
Flexible, thin and light weight
Easy for fiber management
High Density Data Center
CPO systems
HPC environments.
| ITEMS | UNITS | DETAILS |
|---|---|---|
| Fiber Type | - | Single‑mode/Multimode |
| Fiber OD | μm | 160‑300 |
| Thickness | mm | ≤ 1.0 |
| Dimension | mm | Up to 800×1000 |
| Fiber Positioning Accuracy | mm | ±0.01 |
| Storage Temperature | ℃ | -40 to+85 |
| Operating Temperature | ℃ | -10 to+60 |
| Flammability Rating | - | UL 94 V‑0 |
| Insertion Loss | dB | <0.1 (excluding connector loss) |
| Termination | - | MT‑Based:MPO,MTP,MT Ferrule etc. Standard:LC,SC,MU,FC,ST etc Others:MMC,MDC,SN,CS etc. |
| Fiber Leading‑out | - | 0.6mm/0.9mm tube 2.0mm‑3.0mm tube Ribbon fibers or discrete fibers |
