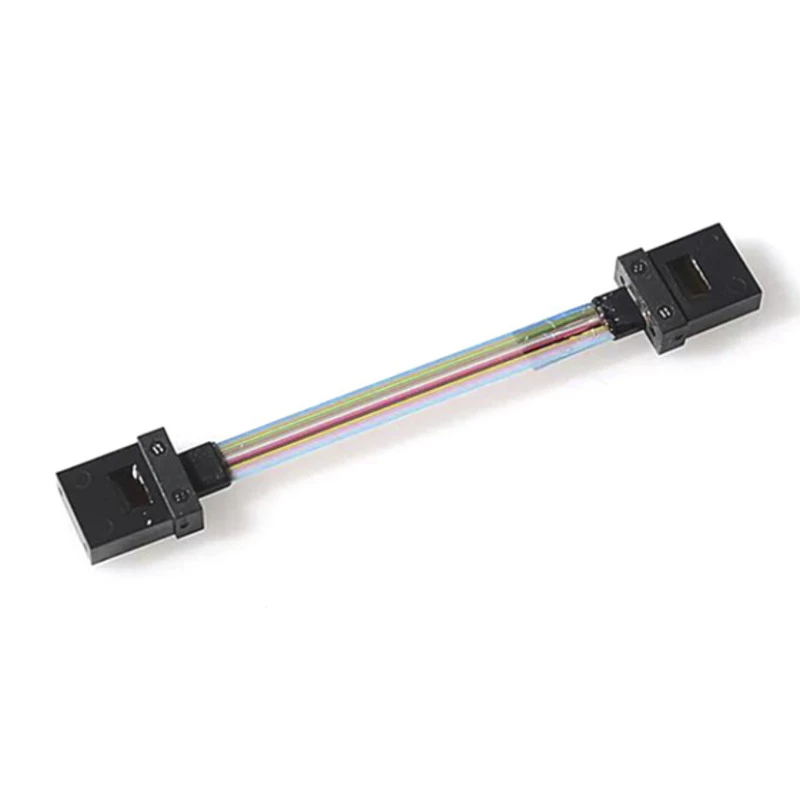

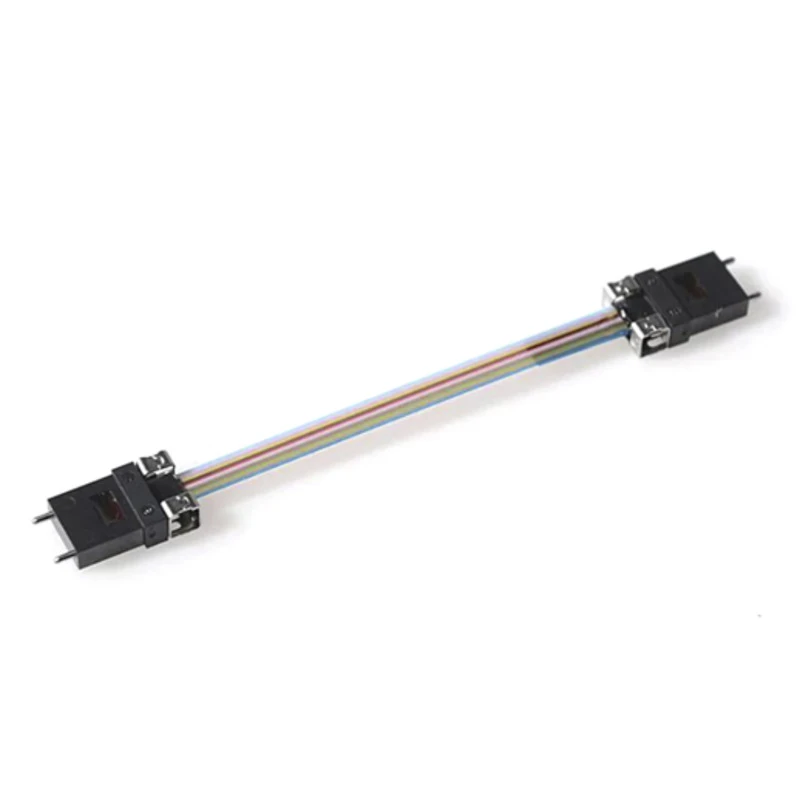

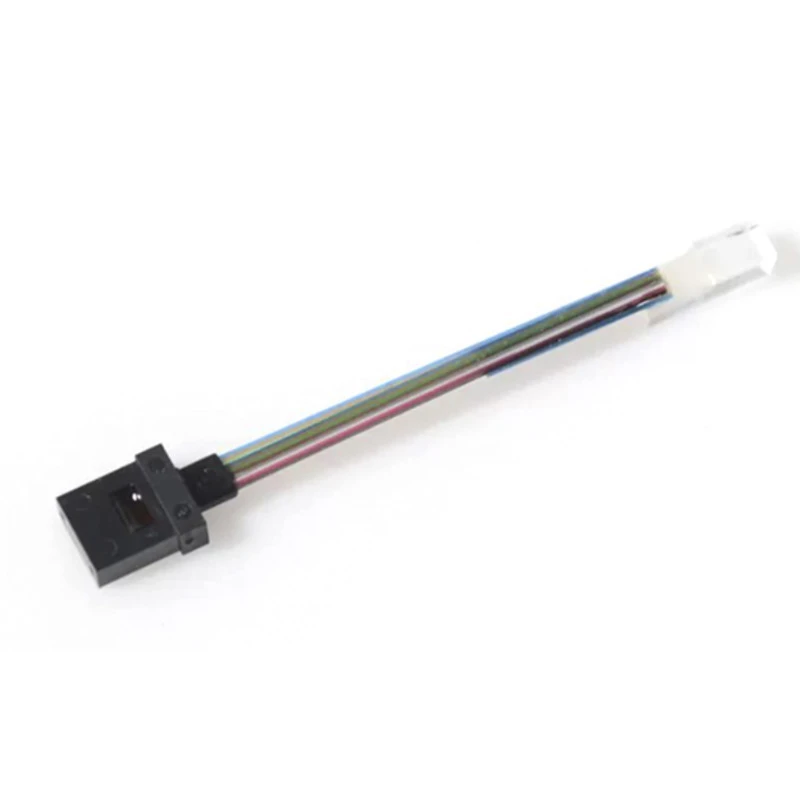

MT-FA using total reflection FA as the RX receiving end to directly couple with the PD array to complete the optical -to- optical conversion of the optical path; use the small size and multiple channels of the MT ferrule to realize the parallel transmission of multiple optical channels at present, it is widely used in high-speed optical module connection.
Simple structure easy to locate Low cost
Customized products available
QSFP(quad small form-factor pluggable SFP+active optical cables
Parallel light optical transceiver module Super computers
Data centers
| Parameter | Unit | SM | MM | |||
|---|---|---|---|---|---|---|
| Insertion Loss | Min | dB | Low Loss | 0.35 | Low Loss | 0.35 |
| Standard Loss | 0.7 | Standard Loss | 0.6 | |||
| Return Loss | Max | dB | 60 | 20 | ||
| Test wavelength | nm | 1310/1550 | 850/1300 | |||
| Channel number | / | 4/8/12/24 | ||||
| FA Material | / | BF33,Pyrex | ||||
| Core Pitch | μm | 127,250, others | ||||
| Core pitch error | Max | μm | 0.5,0.7,1.0 | |||
| Polish/Title angle tolerance | ° | +/-0.3,+/-0.5 | ||||
| Fiber length tolerance | mm | +/-0.2,+/-0.5 | ||||
| Compliance standard | / | GR-1209-CORE,GR-1221-CORE,GR-1435-CORE, | ||||
| Operating Temperature | ℃ | -20 to +75 | ||||
| Storage Temperature | ℃ | -40 to +85 | ||||
