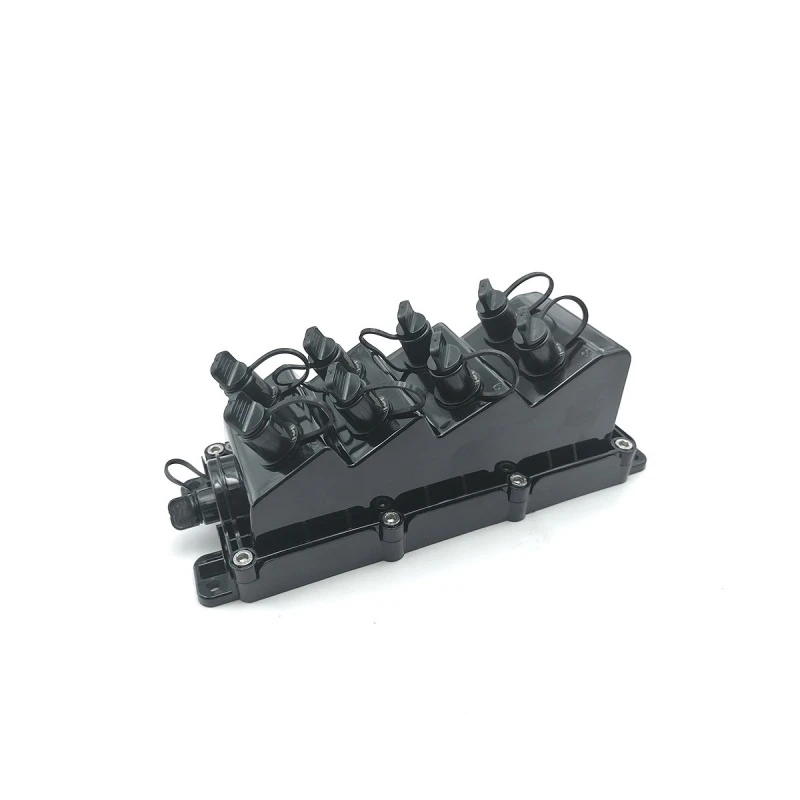

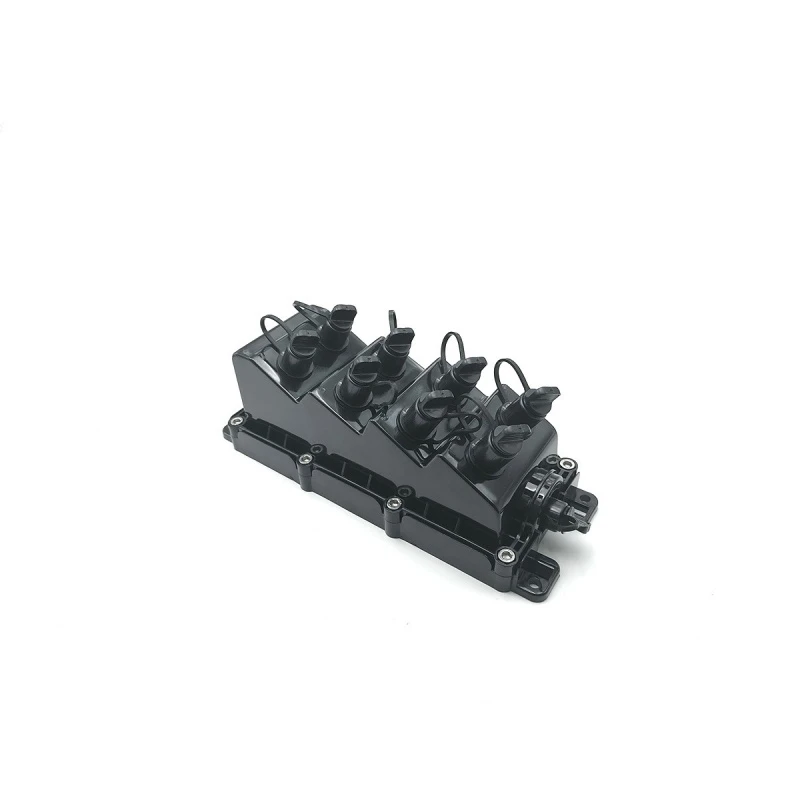

The Multi Service Terminal Box(MST) Pre-connectorized with Corning Optitap or Huawei Mini SC hardened adapters, also named FiberHub Box or Connectorized block terminal. They are 2 ports, 4 ports, 6 ports, 8 ports or 12 ports for options. It is popular used for FTTH last-mile fast deployment, they are fully IP68 rated to withstand the outdoor harsh environments.
Factory pre-terminated
2/4/6/8/12 Ports avaliable
Good mechanical vibration and impact performance
UV & Chemical corrosion resistance
Simplified maintenance and upgrades
FTTH last-mile networks
Outdoor harsh environments
FTTx Networks
| No of Ports | 2, 4, 6, 8, 12 Ports |
|---|---|
| Material | Reinforced PC+ABS |
| IP Rate | IP68 |
| Drop Cable Dimension | 3.0x4.5mm; 4x7mm; 4.5x8.1mm; 4.5x9.8mm with LSZH,PE Jacket |
| Adapter Type | Mini SC hardened adapters |
| Entrance Type | Cable gland or Mini SC hardened adapter |
| Feed Cable Length | 100M 150M 200M or Others |
| Installation Method | Hand-hole, Pedestal, Pole, Strand, Aerial |
