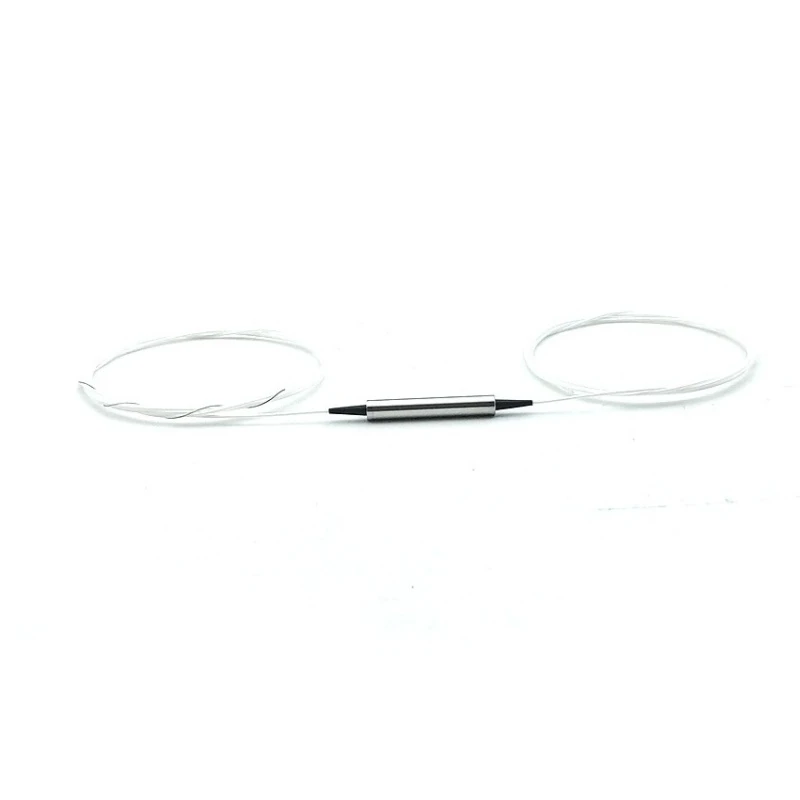

1310nm 1550nm Single stage/Dual stage Polarization-Insensitive Optical Isolator utilizes Faraday effect of Magneto optical crystal. It guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction at any polarization sate.The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The devices are characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, Fiber lasers, transmitters and other fiber optic communication equipments to suppress back reflection and back scattering.
High Isolation
Low Insertion Loss
High Return Loss
Low Polarization Sensitivity
EDFA
CATV
Optical Testing
Telecommunications
| Parameters | Single Stage Grade P |
Single Stage Grade A |
Dual Stage Grade P |
Dual Stage Grade A |
|---|---|---|---|---|
| Center Wavelength (λc)(nm) | 1310, 1480 or 1550 | 1310, 1480 or 1550 | 1310, 1480 or 1550 | 1310, 1480 or 1550 |
| Typ. Peak Isolation(dB) | 42 | 40 | 55 | 52 |
| Min. Isolation, λc ± 10 nm, 23 ℃, all polarization states(dB) | 30 | 28 | 42 | 40 |
| Typ. Insertion Loss, λc ± 10 nm, 23 ℃, all polarization states(dB) | 0.35 | 0.5 | 0.45 | 0.6 |
| Max. Insertion Loss, λc ± 20 nm, all temperature, all polarization states(dB) | 0.5 | 0.7 | 0.6 | 0.9 |
| Min. Return Loss (Input/Output)(dB) | 60/55 | 60/55 | 60/55 | 60/55 |
| Max. Polarization Dependent Loss, 23 ℃(dB) | 0.1 | 0.15 | 0.1 | 0.15 |
| Max. Polarization Mode Dispersion(ps) | 0.2 | 0.25 | 0.05 | 0.07 |
| Max. Optical Power (Continuous Wave)(mW) | 300 | 300 | 300 | 300 |
| Max. Tensile Load(N) | 5 | 5 | 5 | 5 |
| Fiber Type | SMF‑28 fiber | SMF‑28 fiber | SMF‑28 fiber | SMF‑28 fiber |
| Operating Temperature(℃) | -5 to +70 | -5 to +70 | -5 to +70 | -5 to +70 |
| Storage Temperature(℃) | -40 to +85 | -40 to +85 | -40 to +85 | -40 to +85 |
