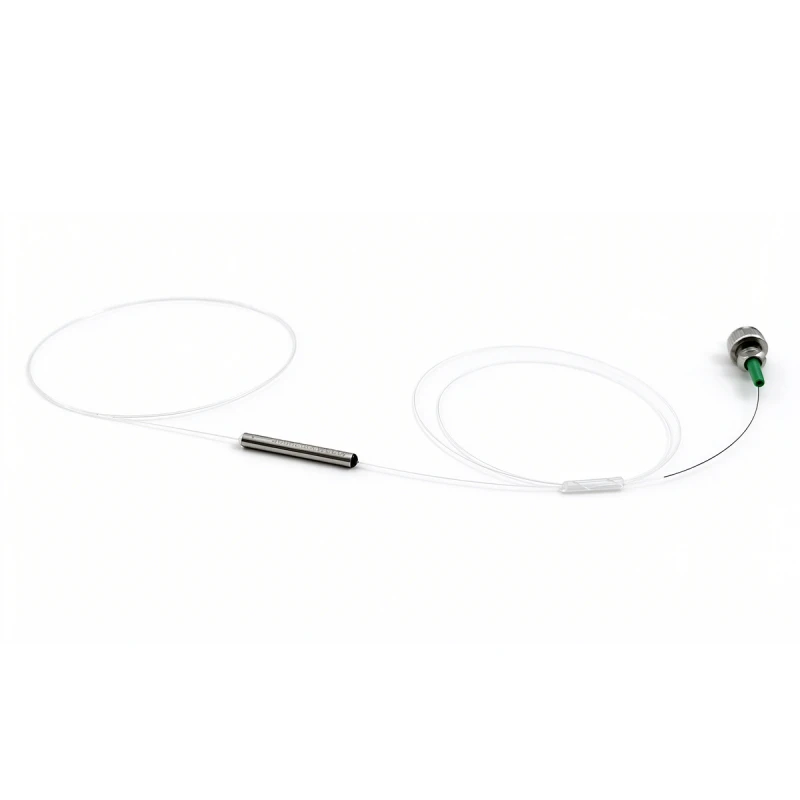

Optical Isolator utilizes Faraday effect of Magneto optical crystal. It guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction at any polarization sate.The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The devices are characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, Fiber lasers, transmitters and other fiber optic communication equipments to suppress back reflection and back scattering.
High Isolation
Low Insertion Loss
High Return Loss
Low Polarization Sensitivity
Fiberoptic Amplifiers
CATV Fiberoptic Links
Fiberoptic Systems Testing
Fiberoptic LAN Systems
Telecommunications
| Parameters | P Grade | A Grade |
|---|---|---|
| Operating Wavelength (nm) | 1310,1480,1550 or customer | 1310,1480,1550 or customer |
| Typical Isolation (dB) | 56 | 56 |
| Isolation (Min)(dB) | ≥42 | ≥40 |
| Insertion Loss (Typ.) (dB) | ≤0.5 | ≤0.6 |
| Insertion Loss (Max.) (dB) | ≤0.6 | ≤0.7 |
| Return Loss (In/Out) (dB) | ≥55/55 | ≥55/55 |
| Polarization Dependent Loss (dB) | ≤0.1 | ≤0.15 |
| polarization mode dispersion(ps) | 0.05 | 0.05 |
| Bandwidth(nm) | ±30 | ±30 |
| Operating Temperature(℃) | -10~+75 | -10~+75 |
| Storage Temperature(℃) | -40~+85 | -40~+85 |
| Fiber Type | Corning SMF‑28 | Corning SMF‑28 |
| Fiber Length (Min.) | 1 meter each end | 1 meter each end |
| Package Dimension (mm) | Φ3.0x25 | Φ3.0x25 |
| Power Handling (mW) | 300 | 300 |
