Optimized Title: 12 Core Loose Tube GYTA Optical Fiber Cable with Aluminum Steel Tape Armor

12 Core Strand Loose Tube Aluminum Steel Tape Armored GYTA Optical Fiber Cable

12 Core Strand Loose Tube Aluminum Steel Tape Armored GYTA Optical Fiber Cable

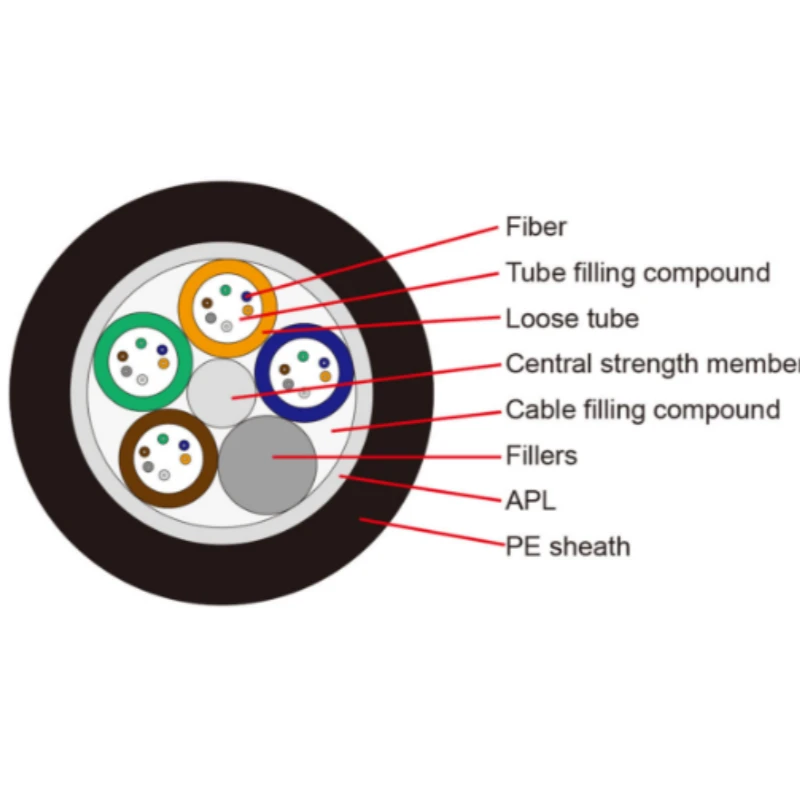

GYTA optical fiber cable uses a stranded loose-tube structure with aluminum tape armor and a PE outer sheath, it is suitable for outdoor duct, aerial, underground, and other telecommunications installations.

Inquiry Now

Next Product

Specification

Items		6	12	24	48	72	96	144
No. of tubes		4	4	4	4	6	8	12
Filler Rod		4	3	1	1	0	0	0
Fibers per tube		6	6	6	12	12	12	12
Loose tube diameter	Value(±0.1mm)	1.6	1.6	1.6	2	2	2	2
Loose tube diameter	Thickness(±0.05mm)	0.3	0.3	0.3	0.3	0.3	0.3	0.3
Out diameter	Value(±0.5mm)	8.6	8.6	8.6	9.8	10.8	12.2	14.9
Out diameter	Thickness(±0.1mm)	1.6	1.6	1.6	1.6	1.6	1.7	1.7
Loose tube	Material	PBT	PBT	PBT	PBT	PBT	PBT	PBT
Loose tube	Color	Standard spectrum	Standard spectrum	Standard spectrum	Standard spectrum	Standard spectrum	Standard spectrum	Standard spectrum
Filler rod	Material	PP	PP	PP	PP	PP	PP	PP
Filler rod	Color	Black	Black	Black	Black	Black	Black	Black
Central strength member	Material	Steel wire	Steel wire	Steel wire	Steel wire	Steel wire	Steel wire	Steel wire
Central strength member	Diameter	1.4	1.4	1.4	1.4	2.0	2.0	2.0
Armor Material		Aluminum tape	Aluminum tape	Aluminum tape	Aluminum tape	Aluminum tape	Aluminum tape	Aluminum tape
Water blocking system Material		Filling gel / Water blocking tape	Filling gel / Water blocking tape	Filling gel / Water blocking tape	Filling gel / Water blocking tape	Filling gel / Water blocking tape	Filling gel / Water blocking tape	Filling gel / Water blocking tape
Out sheath	Material	MDPE	MDPE	MDPE	MDPE	MDPE	MDPE	MDPE
Out sheath	Color	Black	Black	Black	Black	Black	Black	Black
