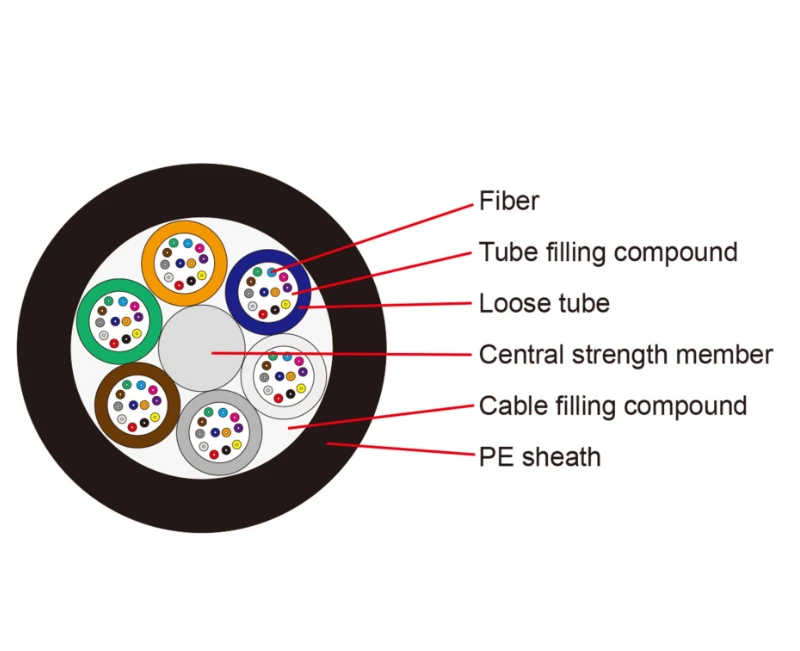

GYFTY (non-metallic strengthening member, loose tube stranded and filled, polyethylene sheathed outdoor optical fiber cable for communication) The structure of the optical cable is to sheath a single-mode or multi-mode optical fiber into a high-modulus plastic filled with waterproof compound loose In the casing. The center of the cable core is a non-metallic reinforced core (FRP).
Light weight, small diameter, easy to lay.
Excellent mechanical and temperature performance.
Low dispersion and attenuation.
Special filling get filled loose tubes provide perfect optical fiber protection.
Non-metal central strength has a excellent anti-electromagnetic ability.
Water blocking system provide reliable performance of moisture-proof and water block.
The fiber reinforced plastic and loose tube filling compound can ensure the cable watertight.
Adopted to outdoor distribution.
Adopted to trunk power transmission system.
Access network and local network in high electromagnetic interfering places
| Cable Type | Fiber Count | Tubes | Fillers | Diameter (mm) | Weight (kg/km) |
Tensile strength(N) | Crush resistance(N/100mm) | Bending radius(mm) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Long‑term | Short‑term | Long‑term | Short‑term | Static | Dynamic | ||||||
| GYFTY‑2~6 | 2~6 | 1 | 5 | 8.8 | 70 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| GYFTY‑8~12 | 8~12 | 2 | 4 | 8.8 | 70 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| GYFTY‑20~24 | 20~24 | 4 | 2 | 8.8 | 70 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| GYFTY‑32~36 | 32~36 | 6 | 0 | 8.8 | 70 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| GYFTY‑38~48 | 38~48 | 4 | 2 | 8.8 | 70 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| GYFTY‑50~60 | 50~60 | 5 | 1 | 8.8 | 70 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| GYFTY‑62~72 | 62~72 | 6 | 0 | 8.8 | 70 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| GYFTY‑86~96 | 86~96 | 8 | 0 | 12.2 | 97 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| GYFTY‑134~144 | 134~144 | 12 | 0 | 13.5 | 108 | 600 | 1500 | 300 | 1000 | 10D | 20D |
