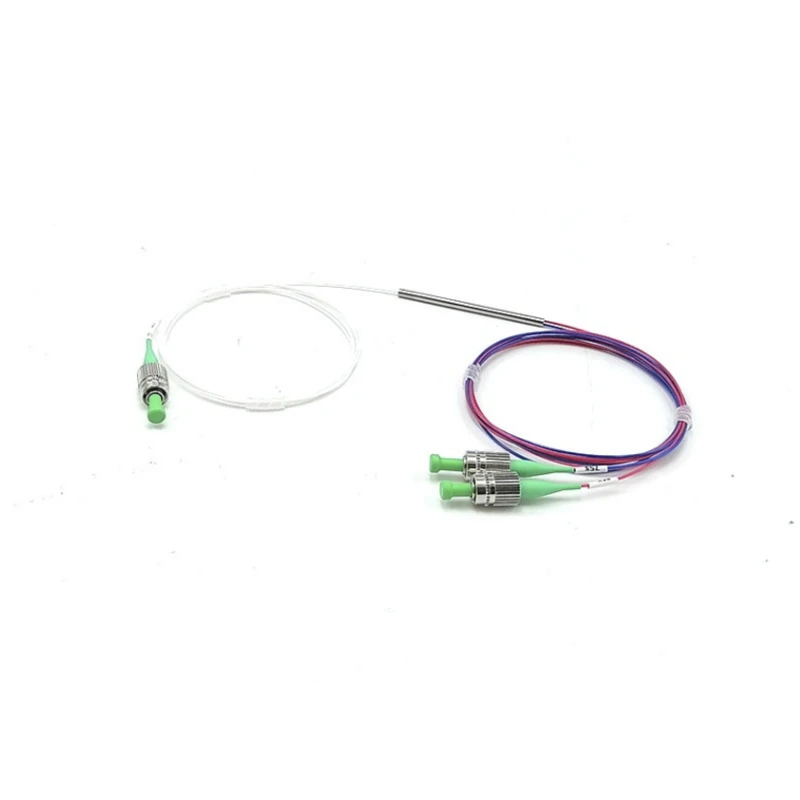

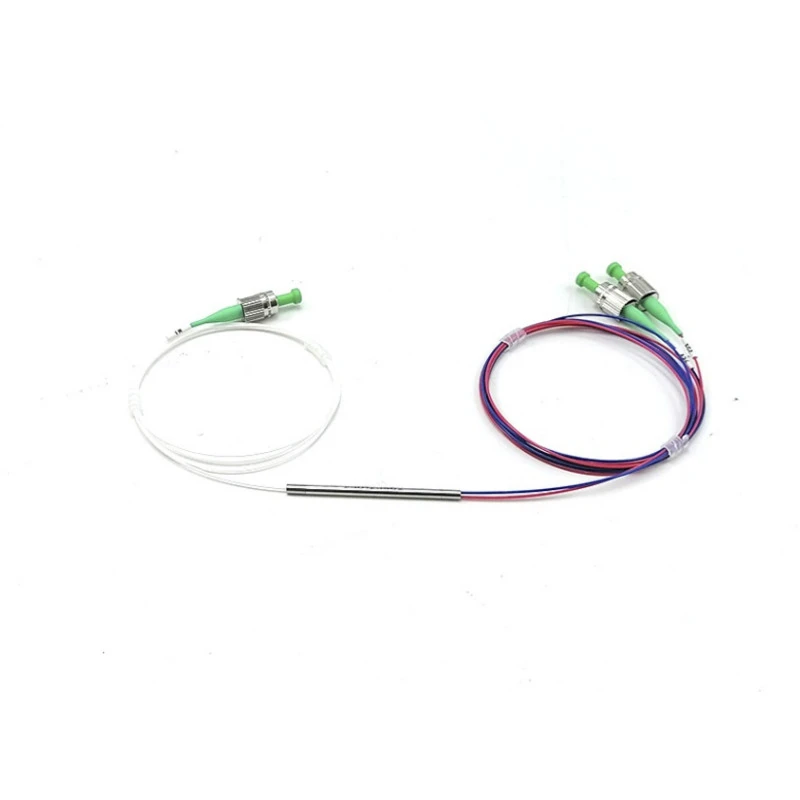

PM fiber coupler is used for splitting optical signals in polarization maintaining panda fiber, it is a micro optic filter type device that provides optical signal splitting while preserving polarization with high ER. this coupler is available in a wide range of coupling ratio's from 1% to 50%, normally come as 1x2 and 2x2 for options. PM couplers are widely used in fiber optic communication systems, Raman Amplifiers and other fiber instrument applications.
High Isolation Low Insertion Loss
High Return Loss High stability and reliability
Epoxy free on optical path
Fiber optic Amplifiers Optical network
Power monitoring Fiber sensor
| Parameter | 1 x 2 | 2 x 2 | ||||
|---|---|---|---|---|---|---|
| Wavelength (nm) | 1310, 1550 | 1064 | 1310, 1550 | 1064 | ||
| Operating Bandwidth (nm) | ±40 | ±20 | ±40 | ±20 | ||
| Excess Loss (dB) | ≤0.7 | ≤0.8 | ≤1.0 | ≤1.2 | ||
| Uniformity (dB) | ≥0.4 | ≥0.5 | ≥0.6 | ≥0.8 | ||
| Coupling Ratio (%) | 1/99~50/50 | |||||
| Extinction Ratio (dB) | Type 2 | ≥20 | ≥20 | ≥18 | ≥18 | |
| (Both of axis working) | ||||||
| Type 1 | ≥22 | ≥22 | ≥22 | ≥22 | ||
| (Fast axis blocked) | ||||||
| Return loss (dB) | ≥50 | |||||
| Power handling (mW) | ≤300 | |||||
| Fiber Type | Tap port 2 | SMF-28 or HI 1060 or Panda fiber | ||||
| Port 1 & 3 | Panda fiber | |||||
| Operating temperature (℃) | -5~+70 | |||||
| Storage temperature (℃) | -40 ~ +80 | |||||
| Dimensions (mm) | φ5.5×L35 | |||||
