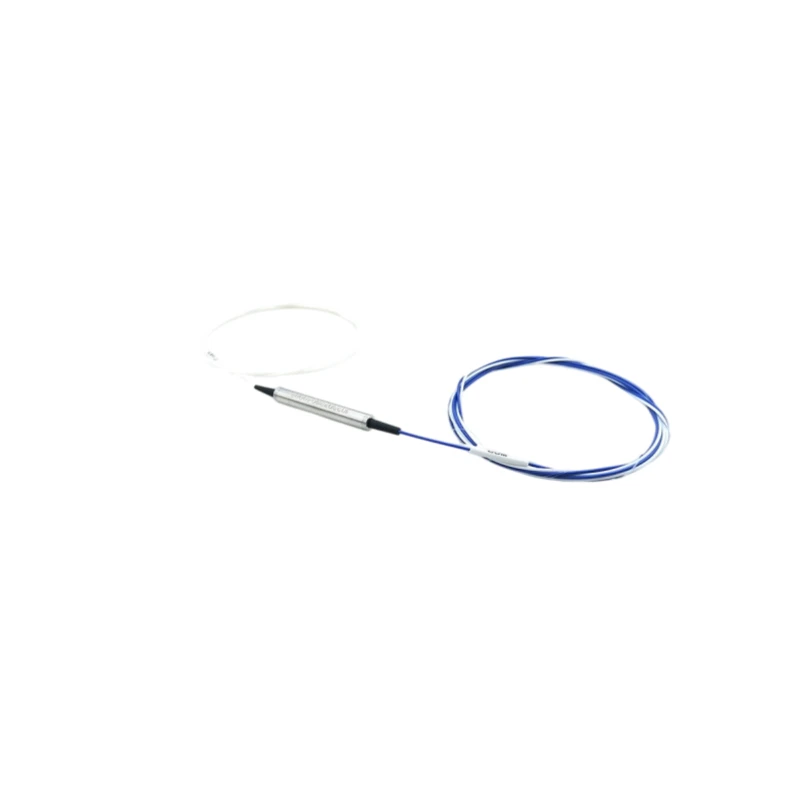

100GHz/200GHz 1x2 wavelength multiplexer utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add or drop at a ITU wavelength. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system
Excellent Channel Isolation
Low Insertion Loss
High Stability & Reliability
ITU Compliance
DWDM Channels Add/Drop
Accessing WAN Networks
EDFA Application Systems
Long Haul Network & Systems
| Parameter | Mux/Demux | ||
|---|---|---|---|
| 100GHz | 200GHz | ||
| Channel Wavelength(nm) | ITU Grid | ||
| Channel Spacing(GHz) | 100 | 200 | |
| Channel Passband (@‑0.5dB bandwidth)(nm) | >0.3 | >0.5 | |
| Pass Channel Insertion Loss (dB) | ≤1.0 | ≤0.9 | |
| Reflection Channel Insertion Loss(dB) | ≤0.6 | ≤0.6 | |
| Channel Ripple(dB) | <0.3 | <0.3 | |
| Isolation(dB) | Adjacent | >30 | >30 |
| Non‑adjacent | >40 | >40 | |
| Insertion Loss Temperature Sensitivity(dB/℃) | <0.005 | <0.005 | |
| Wavelength Temperature Shifting (nm/℃) | <0.002 | <0.002 | |
| Polarization Dependent Loss(dB) | <0.1 | <0.1 | |
| Polarization Mode Dispersion(ps) | <0.1 | <0.1 | |
| Directivity(dB) | >50 | >50 | |
| Return Loss(dB) | >45 | >45 | |
| Maximum Power Handling(mW) | 300 | 300 | |
| Opterating Temperature(℃) | -10~+75 | -10~+75 | |
| Storage Temperature(℃) | -40~+85 | -40~+85 | |
