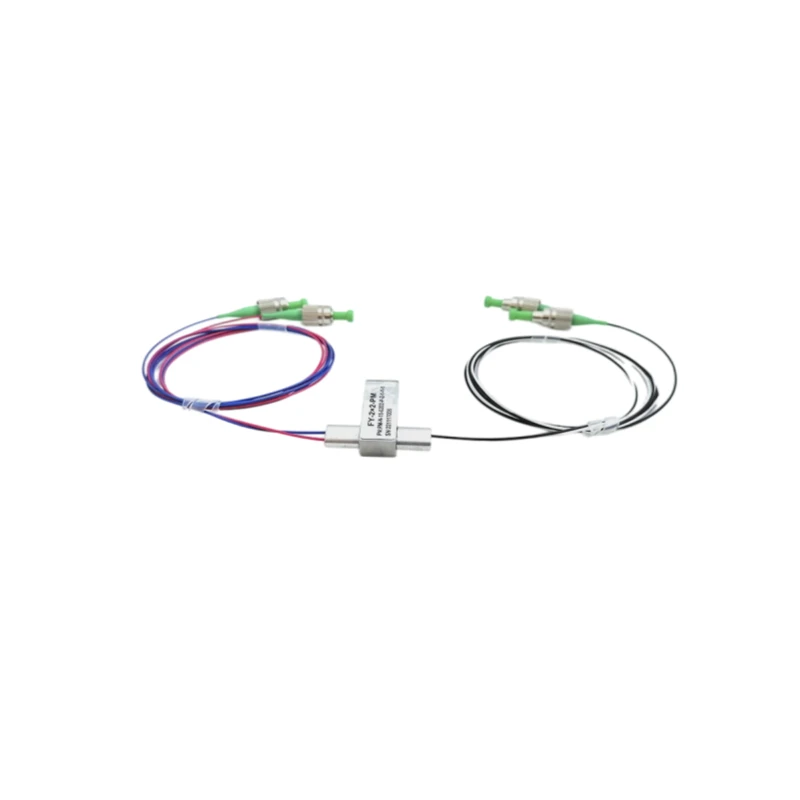

Polarization Maintaining Optical Switch (PM Fiber Switches) is a passive component possessing two or more ports that selectively transmits, redirects or blocks optical signals from a given input port to a given output port in an optical fiber transmission line. OPTEKCOM’s polarization maintaining (PM) fiber switches are fabricated from PM panda fibers and high-quality connectors that are compatible with industry standards. They are able to maintain a well-defined state of polarization (SOP) of the light.
Low cost
Low insertion loss
High stability and reliablility
Epoxy free on optical path
OADM
System monitoring
Optical network protection
Equipement
| Parameters | PM 2x2 1310±40nm |
PM 2x2 1550±40nm |
|---|---|---|
| Operating Wavelength (nm) | 1310± 40 | 1550±40 |
| Insertion Loss (dB) IL ( P Grade) | < 1.2 | < 1.2 |
| Wavelength Dependent Loss (WDL) (dB) | ≤ 0.30 | ≤ 0.30 |
| PDL (dB) | ≤ 0.05 | ≤ 0.05 |
| TDL(dB) | < 0.25 | < 0.25 |
| Crosstalk(dB) | >55 | >55 |
| Repeatability(dB) | < ± 0.02 | < ± 0.02 |
| Extinction Ratio (dB) | > 18 | > 18 |
| Return Loss(dB) | > 55 | > 55 |
| Switch Time (ms) | <10 (Typ.4) | <10 (Typ.4) |
| Resistance (pin 1‑5 or 6‑10) (ohms) | 178 ± 10% | 178 ± 10% |
| Power Supply (V) | 5 | 5 |
| Transmission Power (mW) | 500 | 500 |
| Lifetime(times) | >10 million | >10 million |
| Operating Temperature(°C) | 0 ～ +70 | 0 ～ +70 |
| Storage Temperature (°C) | -45 ～ +85 | -45 ～ +85 |
| Fiber Type | PM1310 / PM1550 | PM1310 / PM1550 |
| Fiber Length (m) | 1.0 +/- 0.1 | 1.0 +/- 0.1 |
| Dimensions (LxWxH) (mm) | 28.3 × 12.0 × 8.5 | 28.3 × 12.0 × 8.5 |
