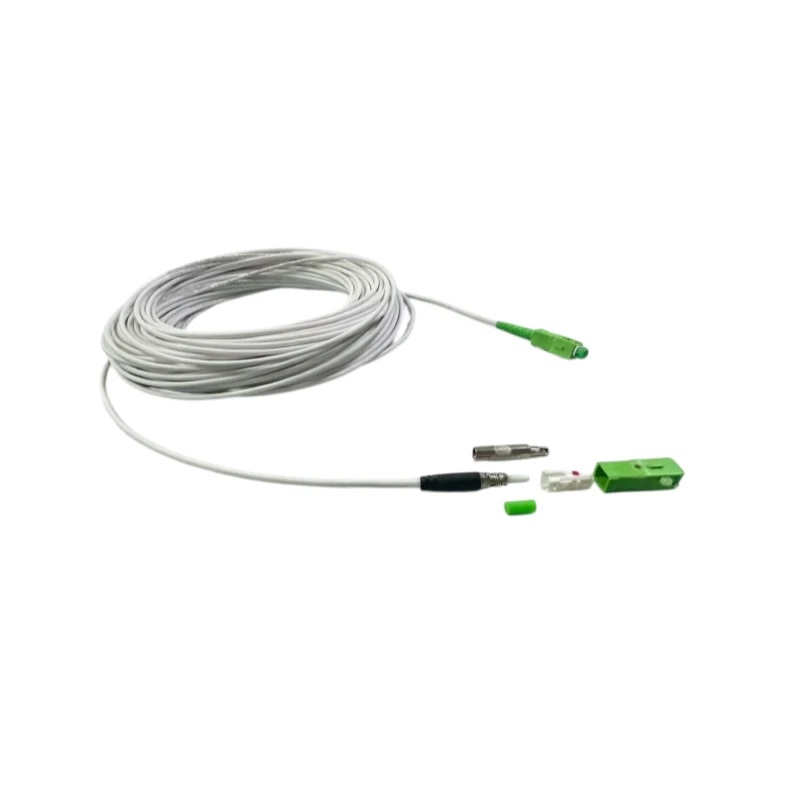

This pushable FTTH drop cable features a unique bullet head for easy routing through walls and ducts, eliminating the need for additional tools. With a pre-terminated SC/APC connector , it enables fast and cost-effective fiber deployment. Ideal for simplifying last-mile installations.
Metal protected mounting head, compatible with 3.0mm round cable
Designed for small pipelines or small wall holes
Available in both singlemode and multimode fiber with UPC and APC polishing
Fast installation requiring no special tools
Multiple installation methods available
Telecommunication systems
FTTR (Fiber to the Room)
CATV networks
LAN & WAN infrastructure
Network broadband
Building and home cable installation
| Fiber Type | G657A2 |
|---|---|
| Fiber Count | 1 |
| Connector A | MTC SC APC |
| Connector B | SC APC |
| Cable Length | Customized |
| Cable Jacket | LSZH |
| Outer Jacket Diameter(mm) | 3.0mm or 2.0*5.0 Flat Drops |
| Crush(N/100mm) | 1000 |
| Maximum Tensile Load (Long term) | 150N |
| Minimum Tensile Load (Short term) | 400N |
