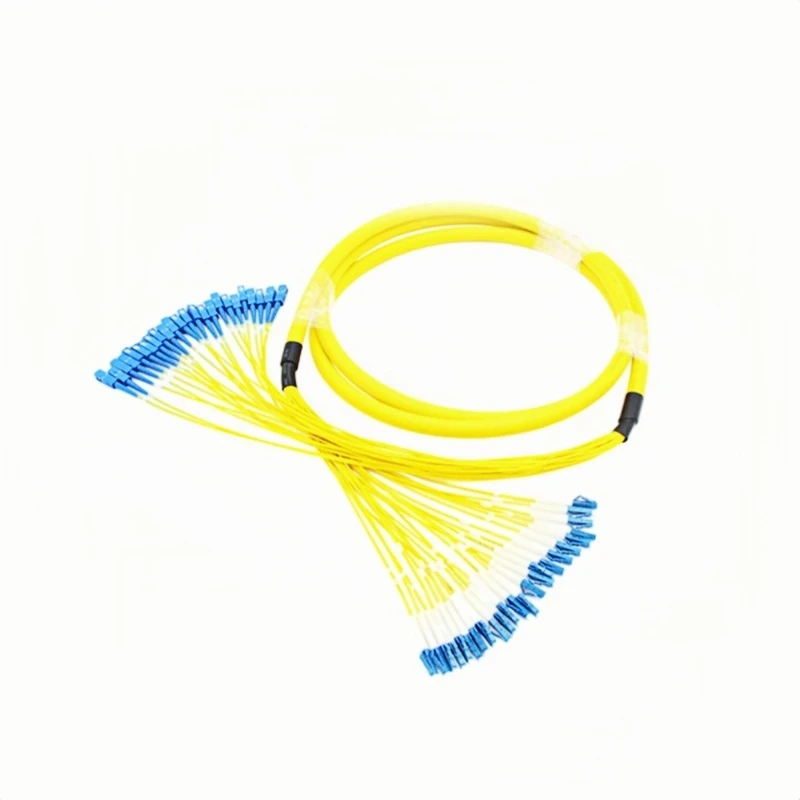

Pre terminated multi fiber cable assemblies are used to provide optical connection for fiber optic system. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
12/24/36/48/72/96/144 fiber
0.9mm 2.0mm 3.0mm break-out leg available
High fiber density,Small volume
Low insertion loss and high reflection loss
High reliability and Excellent mechanical capability
High density cable wiring system
Switching between trunk line and distribution line
High integrated equiement and devices
Local/wide area networks
| Fiber Counts | 12/24/36/48/72/96/144 Core |
|---|---|
| Fiber Type | SM MM(OM1 OM2 OM3 OM4 OM5) |
| Connector Style | SC/FC/ST/LC |
| Polish or Ferrule Interface Type | UPC, APC |
| Breakout Cable Diameter | 0.9mm, 2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
