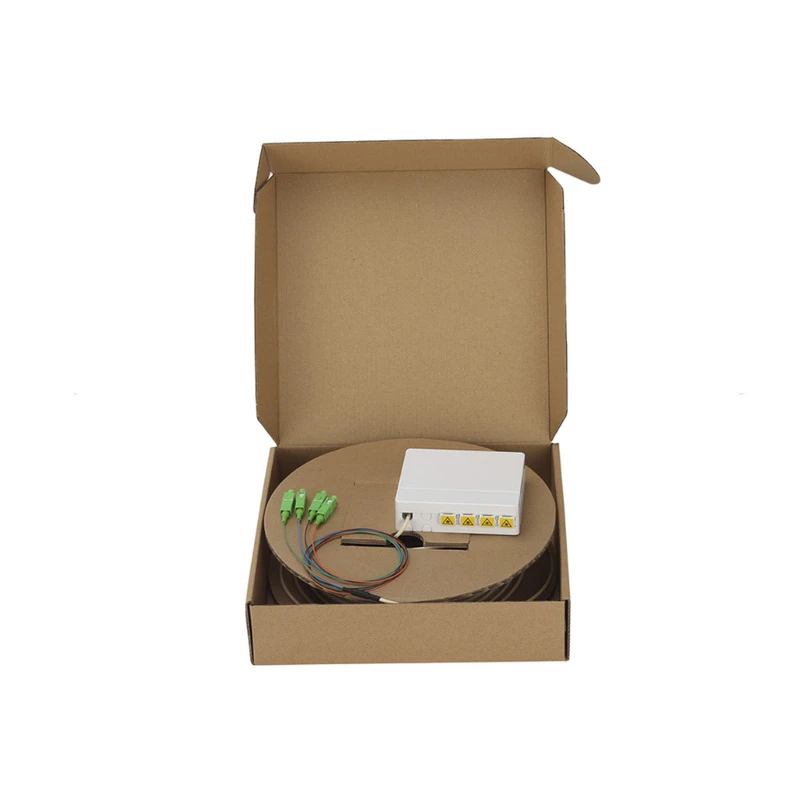

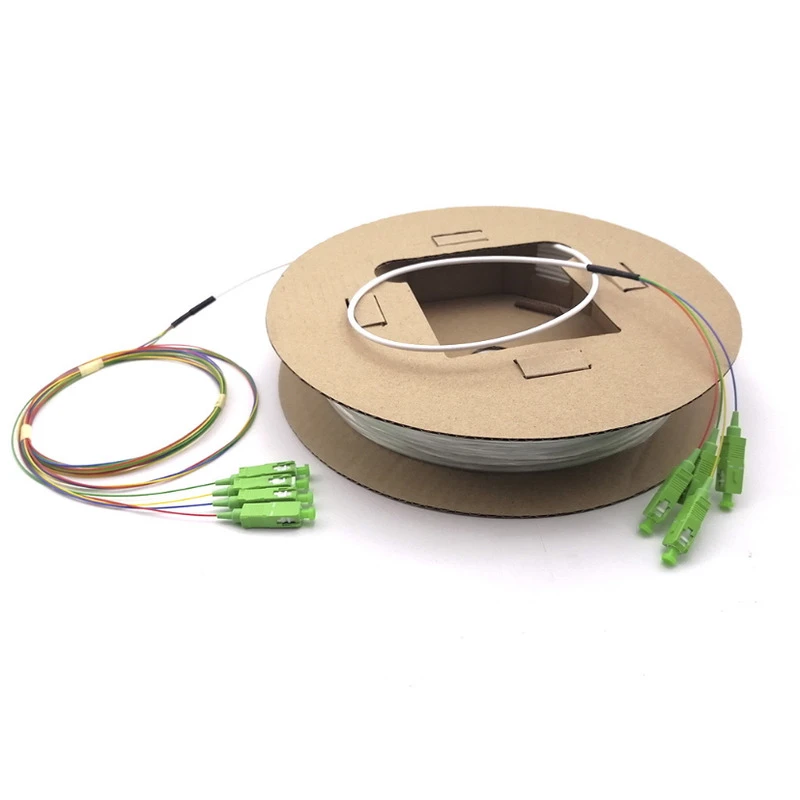

4 FO Pre-Terminated Outlet Kit (PTO) is pre-terminated integrated with wall outlet composed drop cable and wall outlet with 1-4 fibers. PTO Series Pre-terminated wall outlet provide for quick and easy deployments with increased reliability which allow for fast service turn-up, improved network reach and lower overall network operating and maintenance costs. A cable guidance ensures that the cable's minimum bending radius is always maintained . The cover protects the contents of the wall outlet and is fixed to the wall outlet without screws just by a simply click-in mechanism. Wall outlet it is equipped with 1, 2 or 4pcs SC/APC adapters. Drop cable with 1, 2 or 4 fibers is design and integration with low curvature radius G657A1/A2. Drop cable is suitable for indoor or outdoor installation. By using this fiber solution are insertion losses reduced with use splice connection on incoming cable fibers.
Fast & tool less installation Different lengths of cable available
Composed of 1, 2 or 4 fiber directly connected to SC/APC inside of wall outlet. On one side of drop cable are mounted in the box directly mounted connectors (no splice).
FTTH applications. FTTB deployments
| Items | Specification |
|---|---|
| Size (H×W×D) | 100×80×29mm |
| Material | ABS Plastic |
| Color | (RAL9001) |
| Storage of fibers | G657A1 or G657A2 |
| Splice Capacity | 1,2,4 Fiber |
| Adapter ports | 4xSC or 4xLC Duplex |
| Input cable | 3mm or 2.0*3.0mm drop cable |
| Installation Models | Wall Mounted |
