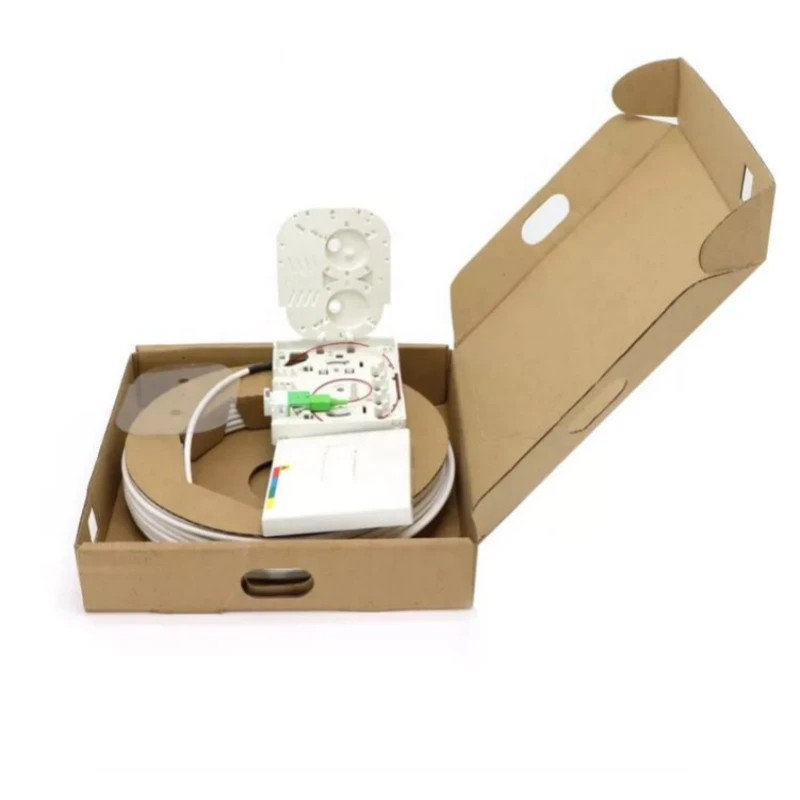

The optical terminal socket (PTO) is part of the final customer cabling, it is installed directly at the subscriber to allow the connection to the internet box. The PTO consists of a low-profile fiber optic outlet box loaded with adapters and a pre-terminated length of cable, conveniently packaged with a cable spool inside a protective carton. With the PTO, installing the last drop cable and fiber optic outlet in a FTTx deployment is a very simple and fast process. The installer simply removes the spool-loaded cable from the carton and attaches the pre-terminated outlet to the wall. The PTO outlet is mounted to the wall using screws, without opening the outlet and disturbing the fiber terminations inside. Alternatively, the PTO can be snapped onto a standard DIN rail.
Fast & tool less installation
Different lengths of cable available
Composed of 1, 2 or 4 fiber directly connected to SC/APC inside of wall outlet.
On one side of drop cable are mounted in the box directly mounted connectors (no splice).
FTTH applications.
FTTB deployments
| Items | Specification |
|---|---|
| Size (H×W×D) | 100×80×29mm |
| Material | ABS Plastic |
| Color | (RAL9001) |
| Storage of fibers | G657A1 or G657A2 |
| Splice Capacity | 1,2,4 Fiber |
| Adapter ports | 4xSC or 4xLC Duplex |
| Input cable | 4.0mm drop cable |
| Installation Models | Wall Mounted |
